BATTERY 🏍️ Shadow
FRAME BODY 🏍️ Shadow

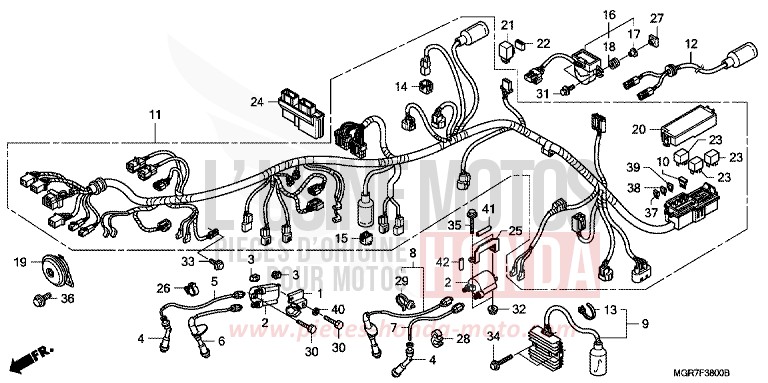

WIRE HARNESS for Shadow GRAPHITE BLACK (NHB01) from 2011

WIRE HARNESS for Shadow GRAPHITE BLACK (NHB01) from 2011
Reference
Product name
#1 17541-MGR-670

CLAMPER, FUEL FEED HOSE

Price €17.83
#2 30510-MCC-003

COIL COMP, IGNITION

Price €160.75
#3 30520-ML7-000

SPACER, IGNITION COIL

Price €8.32
#4 30700-KK6-153 i

CAP ASSY, NOISE SUPPRESSOR

Price €30.35
#5 30771-MGR-671

CORD ASSY, R FR HIGH TENSION

Price €38.04
#6 30772-MGR-671

CORD ASSY, L FR HIGH TENSION

Price €71.69
#7 30773-MGR-671 i

CORD ASSY, L RR HIGH TENSION

Price €38.04
#8 30774-MGR-671

CORD ASSY, R RR HIGH TENSION

Price €76.22
#9 31600-MGR-671

RECTIFIER ASSY, REGULATOR

Price €385.96
#10 31730-MAS-601 i

DIODE ASSY, THREE WAY (SUMITOMO)

Price €22.76
#11 32100-MGR-640

HARNESS, WIRE

Price €1,210.50
#12 32104-MGR-670

SUB HARNESS, RR

Price €66.14
#13 32161-GFL-J41

BAND, WIRE HARNESS

Price €9.12
#14 32606-GEV-761

CAP, DUMMY (4P) (RED)

Price €10.52
#15 32606-MEL-D01

CAP, DUMMY (6P) (NATURAL)

Price €14.86
#16 35160-MGR-671

SENSOR ASSY, BANK ANGLE

Price €326.86
#17 35162-MN5-003

COLLAR

Price €11.45
#18 35163-MN5-003

GROMMET

Price €9.17
#19 38110-KSV-J00

HORN COMP (HIGH)

Price €120.84
#20 38252-MFJ-D01

COVER, UPPER

Price €24.32
#21 38301-MEG-000

RELAY COMP, WINKER (MITSUBA)

Price €58.76
#22 38306-KK4-000

SUSPENSION, WINKER RELAY (MITSUBA)

Price €9.01
#23 38501-MEL-003 i

RELAY ASSY, POWER (MICRO ISO 4P)

Price €7.66
#24 38770-MGR-641

PGM-FI UNIT

Price €1,207.00
#25 50331-MGR-670

PLATE, HEAT

Price €13.80
#26 53781-SE0-952

CLIP, RETURN HOSE

Price €7.55
#27 90300-GC8-000

NUT, SPECIAL, 4MM

Price €3.28
Contact us
#28 90658-ZA0-930

CLIP, HIGH TENSION CORD

Price €2.08
#29 91541-S0A-003

CLIP, HARNESS BAND (BLACK) (145MM)

Price €6.83
#30 92101-060254J

BOLT, HEX, 6X25

Price €1.19
#31 93404-0402508

BOLT-WASHER, 4X25

Price €1.00
#32 94050-06070 i

NUT, FLANGE, 6MM

Price €1.08
#33 95701-0600800 i

BOLT, FLANGE, 6X8

Price €1.00
#34 95701-0602000 i

BOLT, FLANGE, 6X20

Price €1.08
#35 95701-0602807 i

BOLT, FLANGE, 6X28

Price €1.25
#36 95701-0801207 i

BOLT, FLANGE, 8X12

Price €1.18
#37 98200-41000

FUSE, MINI (10A)

Price €1.25
#38 98200-42000

FUSE, MINI (20A)

Price €1.25
#39 98200-43000

FUSE, MINI (30A)

Price €1.85
#40 90504-HW1-670

WASHER, PLAIN, 6MM

Price €6.13
#41 17516-HC0-000

TRIM, FUEL TANK

Price €8.23
#42 17516-HC4-000

TRIM, FUEL TANK

Price €7.96
