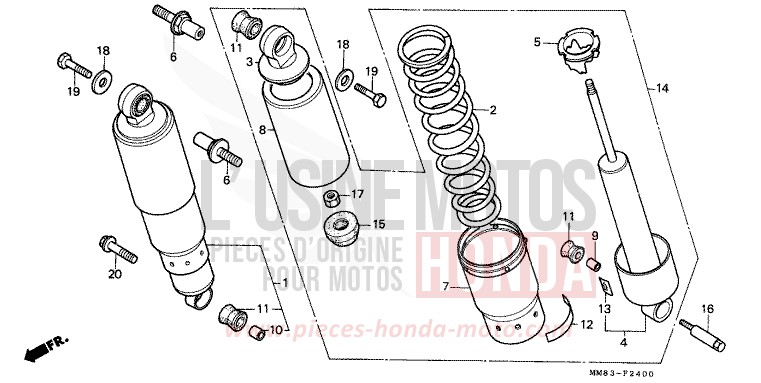

REAR CUSHION for Shadow CANDY WINE BERRY RED-U (R114) from 1988

REAR CUSHION for Shadow CANDY WINE BERRY RED-U (R114) from 1988
Reference
Product name
#1 52400-MM8-003

CUSHION ASSY, R RR (SHOWA)

Contact us
#2 52401-MM8-003

SPRING, RR CUSHION (SHOWA) (2842N/MM, 29KGF/MM)

Contact us
#3 52403-MM8-003

JOINT COMP, UPPER (SHOWA)

Contact us
#4 52410-MM8-003

DAMPER COMP, RR (SHOWA)

Contact us
#5 52422-MM8-003

ADJUSTER, SPRING (SHOWA)

Contact us
#6 52452-MM8-000

BOLT, RR CUSHION

Contact us
#7 52458-MM8-003

SEAT, SPRING (SHOWA)

Contact us
#8 52460-MM8-003

CASE, RR CUSHION UPPER ()

Contact us
#9 52486-MG9-671

COLLAR, RR CUSHION

Price €11.77
#10 52486-463-000

COLLAR, RR CUSHION

Price €10.15
#11 52489-KR3-003

BUSH, RR CUSHION

Price €7.07
#12 52496-MB4-003

LABEL A

Price €15.11
#13 52497-KR3-003

LABEL B, RR CUSHION

Price €7.66
Contact us
#14 52500-MM8-003

CUSHION ASSY, L RR (SHOWA)

Contact us
#15 52517-410-003

RUBBER, STOPPER

Contact us
#16 90159-MG9-000

BOLT, RR CUSHION

Price €21.64
#17 90301-376-003

NUT, HEX, 11MM

Price €18.61
#18 90504-ME4-000

WASHER, 85X26

Price €5.70
#19 95301-0801202

BOLT, HEX, 8X35

Price €0.86
Contact us
#20 95800-1003502

BOLT, FLANGE, 10X35

Price €2.04
