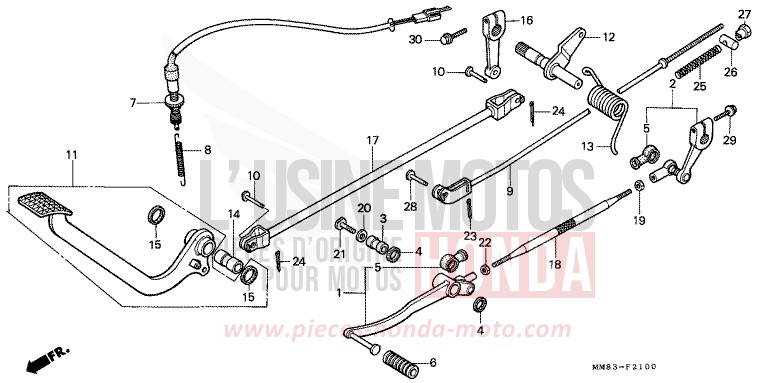

BRAKE PEDAL/CHANGE PEDAL for Shadow CANDY WINE BERRY RED-U (R114) from 1988

BRAKE PEDAL/CHANGE PEDAL for Shadow CANDY WINE BERRY RED-U (R114) from 1988
Reference
Product name
#1 24701-MM8-000

PEDAL COMP, GEAR CHANGE

Price €186.89
Contact us
#2 24702-MM8-000

ARM COMP, GEAR CHANGE

Price €119.05
#3 24705-MK3-000

COLLAR, GEAR CHANGE PEDAL PIVOT

Price €16.91
#4 24706-MK3-770

RUBBER OF CACH-POUSSIERE

Price €8.72
#5 24724-422-000

COVER-POUSSIERE

Price €16.20
#6 24781-KR3-770

RUBBER, GANGSCHALTPEDAL

Price €8.78
#7 35350-MM8-010 i

SWITCH ASSY, RR STOP

Price €32.03
Contact us
#8 35357-ME9-000 i

SPRING, STOP SWITCH

Price €7.06
#9 43451-MM8-000

ROD, RR BRAKE

Price €26.40
Contact us
#10 43456-MK7-000

PIN, MIDDLE ROD JOINT

Price €14.81
#11 46500-MM8-000

PEDAL ASSY, RR BRAKE

Contact us
#12 46510-MM8-000

ARM COMP, RR BRAKE MIDDLE

Contact us
#13 46514-MM8-000

SPRING, BRAKE RETURN

Price €10.97
Contact us
#14 46515-MM8-000

COLLAR, RR BRAKE PIVOT

Price €17.39
#15 46525-KK0-003 i

COVER-POUSSIERE, 17X20X2.5

Price €5.63
#16 46530-MM8-000

ARM, RR BRAKE PEDAL PIVOT

Contact us
#17 46540-MM8-000

ROD, RR BRAKE MIDDLE

Contact us
#18 90065-MM8-000 i

BOLT, TIE ROD

Price €27.72
Contact us
#19 90201-700-000 i

LOCK NUT, SPEED REGULATOR- ARM (LEFT-HAND THREAD)

Price €0.86
#20 90514-921-000

WASHER, 8MM

Price €1.86
#21 92201-080350A i

BOLT, HEX, 8X35

Price €0.34
#22 94002-060000S i

NUT HEX., 6MM

Price €1.07
#23 94201-16120

SPLIT PIN, 1.6X12

Price €0.64
#24 94201-20150 i

SPLIT PIN, 2.0X15

Price €0.78
#25 95014-73100 i

SPRING A OF ROD OF BRAKE

Price €1.50
#26 95015-32001 i

BRAKE ARM CONNECTOR B

Price €1.50
#27 95015-42000 i

NUT B OF ADJUSTMENT OF ROD OF BRAKE

Price €3.00
#28 95015-52000 i

PIN B, BRAKE ROD JOINT

Price €3.00
#29 95700-0602002

BOLT, FLANGE, 6X20

Price €1.16
#30 95700-0802502

BOLT, FLANGE, 8X25

Price €1.70
