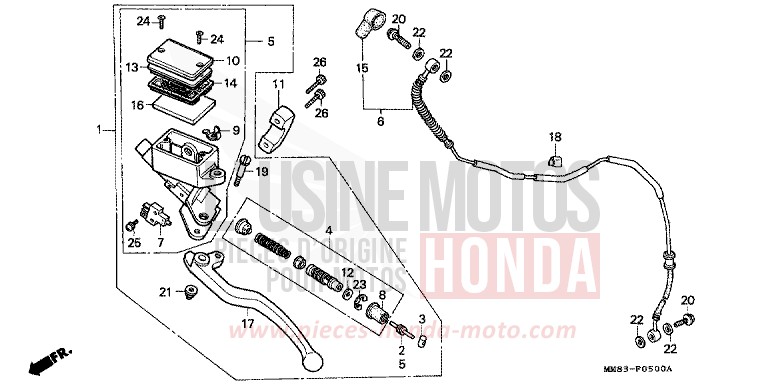

CLUTCH for Shadow CANDY WINE BERRY RED-U (R114) from 1988

CLUTCH for Shadow CANDY WINE BERRY RED-U (R114) from 1988
Reference
Product name
#1 22880-MM8-671 i

CYLINDER ASSY, CLUTCH MASTER (NISSIN)

Price €462.05
Contact us
#2 22884-MB0-006 i

ROD, PUSH

Price €52.04
#3 22885-MB0-006 i

BUSH

Price €19.03
#4 22886-MG8-671 i

PISTON SET, CLUTCH MASTER CYLINDER

Price €146.24
#6 22900-MM8-000

PIPE COMP, CLUTCH

Contact us
#7 35330-MB0-003 i

SWITCH ASSY, CLUTCH

Price €39.18
#8 45504-410-003 i

BOOT COMP

Price €17.71
#9 45512-MA6-006

PROTECTOR

Price €7.12
#10 45513-MM8-671

CAP, MASTER CYLINDER

Price €41.05
Contact us
#11 45517-MM8-671

HOLDER, MASTER CYLINDER

Price €25.56
Contact us
#12 45518-MB0-006

PLATE, STOPPER

Price €6.67
#13 45518-MB4-671

PLATE, DIAPHRAGM

Price €19.50
#14 45520-MA5-672 i

DIAPHRAGM

Price €29.24
#15 45522-422-000

BOOT, MASTER CYLINDER

Price €15.16
#16 45523-MG9-006

FLOAT, FR MASTER CYLINDER

Price €5.41
Contact us
#17 53178-MJ0-921 i

LEVER COMP, L HANDLE

Price €55.22
#18 61108-MJ1-830

CLAMP, MICROPHONE CORD

Price €6.52
#19 90114-MA5-671 i

BOLT, HANDLE LEVER PIVOT

Price €13.19
#20 90145-KM3-750 i

BOLT, OIL, 10X22

Price €18.73
#21 90201-415-000

NUT, CAP, 6MM

Price €7.06
#22 90545-300-000 i

WASHER, OIL BOLT

Price €5.30
#23 90651-377-003

CIRCLIP, INTERNAL, 18MM

Price €6.52
#24 93600-040121A

SCREW, FLAT, 4X12

Price €0.64
#25 93893-0401217 i

SCREW-WASHER, 4X12

Price €1.08
#26 96700-0602210 i

BOLT, SOCKET, 6X22

Price €1.66
