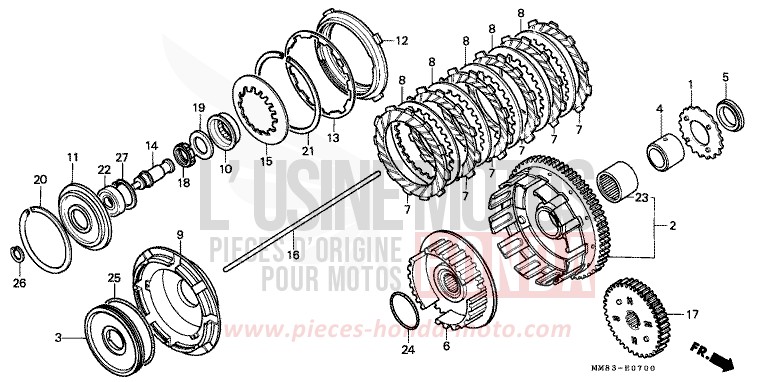

CLUTCH for Shadow CANDY WINE BERRY RED-U (R114) from 1988

CLUTCH for Shadow CANDY WINE BERRY RED-U (R114) from 1988
Reference
Product name
#1 15131-MG8-000

SPROCKET COMP, OIL PUMP DRIVE (26T)

Price €63.66
#2 22100-MM8-000

OUTER COMP, CLUTCH

Contact us
#3 22111-MG8-000

PISTON, CLUTCH

Contact us
#4 22116-MG8-000

GUIDE, CLUTCH OUTER

Price €54.29
Contact us
#5 22117-MG8-000

COLLAR, DISTANCE

Price €44.80
#6 22120-MM8-000

CENTER, CLUTCH

Contact us
#7 22201-MG8-010

DISK A, CLUTCH FRICTION

Price €23.18
#8 22321-MG8-000 i

PLATE, CLUTCH

Price €19.28
#9 22351-MM8-000

PLATE, CLUTCH PRESSURE

Contact us
#10 22352-MM8-000

GUIDE, SPRING

Contact us
#11 22353-MG8-000

PLATE, CLUTCH LIFTER

Contact us
#12 22354-MM8-000

LIFTER B, CLUTCH

Contact us
#13 22355-MG8-000

SPRING, CLUTCH LIFTER

Price €36.19
#14 22366-MG8-010

PIECE, CLUTCH JOINT

Contact us
#15 22441-MG8-000

SPRING, CLUTCH

Price €25.75
Contact us
#16 22850-MM8-000

ROD, CLUTCH LIFTER

Price €21.74
Contact us
#17 23110-MM8-000 i

GEAR ASSY, PRIMARY DRIVE (39T)

Price €360.67
Contact us
#18 90231-MM8-000 i

NUT, LOCK, 25MM

Price €21.13
#19 90432-MM8-003 i

WASHER, SPRING, 25MM (CHUO HATSUJO)

Price €11.70
#20 90601-MG8-000 i

CIRCLIP, INTERNAL, 95MM

Price €20.12
#21 90602-MG8-000

RING, SETTING, 123MM

Price €22.40
#22 91008-362-000 i

BEARING, RADIAL BALL, 16003

Price €33.26
#23 91024-MB0-003 i

BEARING, NEEDLE, 35X42X30 (TOYO)

Price €81.01
#23 91024-MB0-004 i

BEARING, NEEDLE, 35X42X30 (NIPPON)

Price €81.01
#24 91301-MG8-003

O-RING, 51X23 (ARAI)

Price €9.79
#25 91302-MG8-003

O-RING, 923X23 (ARAI)

Price €11.29
#26 94510-17000 i

CIRCLIP, EXTERNAL, 17MM

Price €1.08
#27 94520-35100

CIRCLIP, INTERNAL, 35MM

Price €1.74
