LEFT CRANKCASE COVER (VT1100CS/CT) 🏍️ Shadow
STARTING MOTOR 🏍️ Shadow

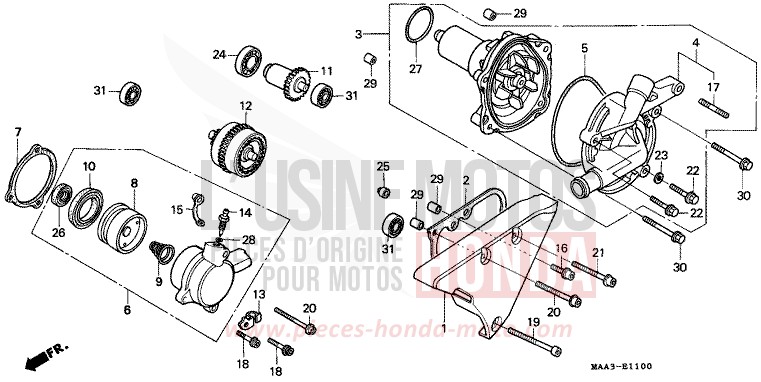

WATER PUMP (VT1100CS/CT) for Shadow CANDY SPECTRA RED (R176BA) from 1995

WATER PUMP (VT1100CS/CT) for Shadow CANDY SPECTRA RED (R176BA) from 1995
Reference
Product name
#1 11364-MM8-000

COVER, STARTER

Contact us
#2 11365-MM8-881 i

GASKET, STARTER COVER

Price €11.98
#3 19200-MAH-000 i

PUMP ASSY, WATER

Price €568.92
#3 19200-MAH-010 i

PUMP ASSY, WATER

Price €568.92
#4 19221-MAH-000

COVER COMP, WATER PUMP

Price €155.39
#5 19226-ME9-000

GASKET, WATER PUMP COVER

Price €8.53
#6 22860-MM8-000

CYLINDER ASSY, CLUTCH SLAVE

Price €83.36
Contact us
#7 22862-MB0-000

INSULATOR, CLUTCH SLAVE CYLINDER

Price €25.86
#8 22863-MB0-003

PISTON, SLAVE CYLINDER

Price €77.60
#9 22864-MB0-003 i

SPRING, SLAVE CYLINDER

Price €11.66
#10 22865-MB0-003

CUP, PISTON

Price €36.67
#11 28130-MAH-000 i

SHAFT COMP, STARTER DRIVE (36T)

Price €129.46
Contact us
#12 28140-MG8-000

LIMITER ASSY, TORQUE

Price €446.77
#13 32111-MM8-000

CLAMPER, CORD

Price €9.00
Contact us
#14 43352-MG9-006

SCREW, BLEEDER

Price €12.72
#15 43353-461-771 i

CAP, BLEEDER

Price €9.12
#16 90012-ME5-000

BOLT, FLANGE SOCKET, 6X32

Price €9.20
Contact us
#17 90045-ZG1-770

BOLT, STUD, 6X25

Price €3.52
#18 90081-MG8-000

BOLT, FLANGE SOCKET, 6X35

Price €8.38
#19 90082-MM8-000

BOLT, SOCKET, 6X75

Contact us
#20 90083-MM8-000

BOLT, FLANGE SOCKET, 6X45

Price €4.75
Contact us
#21 90093-KL8-000 i

BOLT, FLANGE SOCKET, 6X40

Price €6.46
#22 90121-MV9-670 i

BOLT, FLANGE, 6X25

Price €1.99
#23 90463-ML7-000 i

WASHER, SEALING, 65MM

Price €4.62
#24 91002-MG8-003 i

BEARING, RADIAL BALL, 6804 (KOYO)

Price €22.84
#25 91201-MG8-000

CAP, RUBBER

Price €8.23
#26 91209-MB0-003 i

OIL SEAL, 8X18X5

Price €5.14
#27 91302-MB0-013 i

O-RING, 3295X262 (ARAI)

Price €6.30
#28 91355-MG9-006 i

O-RING

Price €6.53
#29 94301-08140 i

DOWEL PIN, 8X14

Price €2.05
#30 95701-0604500 i

BOLT, FLANGE, 6X45

Price €1.66
#31 96100-6000000 i

BEARING, RADIAL BALL, 6000

Price €12.70
