CYLINDER HEAD (FRONT) (VT1100CS/CT) 🏍️ Shadow
CAMSHAFT/VALVE 🏍️ Shadow

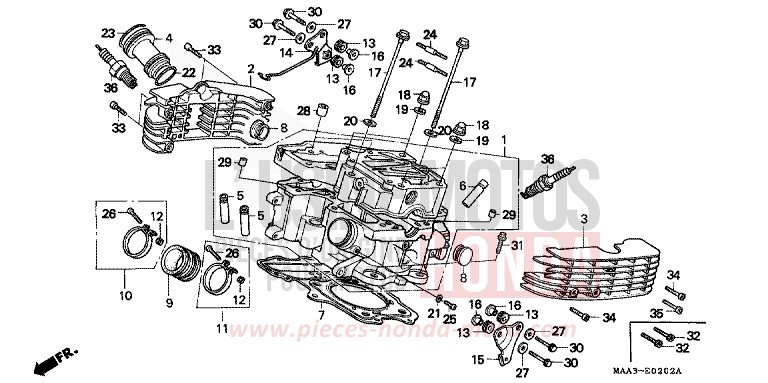

CYLINDER HEAD (REAR) (VT1100CS/CT) for Shadow CANDY SPECTRA RED (R176BA) from 1995

CYLINDER HEAD (REAR) (VT1100CS/CT) for Shadow CANDY SPECTRA RED (R176BA) from 1995
Reference
Product name
#1 12020-MAA-010

HEAD ASSY, RR CYLINDER

Contact us
#2 12222-MM8-680

FIN A, RR CYLINDER HEAD

Contact us
#3 12223-MM8-680

FIN B, RR CYLINDER HEAD

Contact us
#4 12225-MG8-000

SLEEVE, PLUG

Price €51.73
#5 12231-MG8-305

GUIDE, IN VALVE (OS)

Price €41.51
#6 12233-MG8-305

GUIDE, EX VALVE (OS)

Price €52.16
#7 12251-MG8-004

GASKET, CYLINDER HEAD

Price €55.15
#8 12312-ME9-750

PLUG, CAMSHAFT

Price €13.07
#9 16211-MG8-000

INSULATOR, CARBURETOR

Price €33.73
#10 16218-MAA-000

BAND, INSULATOR

Contact us
#11 16219-MAH-000

BAND B, INSULATOR

Price €19.54
#12 16222-MV4-300

NUT, SQUARE, 5MM

Price €3.23
#13 38119-MM8-000

GROMMET, HORN STAY

Price €9.37
#14 50328-MM8-680

STAY, R HORN

Contact us
#15 50329-MM8-680

STAY, L HORN

Contact us
#16 61104-943-000

COLLAR, FUEL TANK MOUNTING

Price €4.54
Contact us
#17 90015-MG8-000

BOLT, FLANGE, 8X150

Price €9.07
#18 90209-MM8-000

NUT, CAP, 10MM

Price €4.82
#19 90403-ML4-610

WASHER, SEALING, 10MM

Price €9.80
#20 90441-ME9-000

WASHER, SEALING, 8MM

Price €3.29
#21 90452-323-000

WASHER, SEALING, 5MM

Price €2.42
#22 91304-MG7-003

O-RING, 274X24 (ARAI)

Price €7.60
#23 91351-MG7-004

O-RING, 353X24 (NOK)

Price €8.35
#24 92900-080350E

BOLT, STUD, 8X35

Price €1.70
#25 93500-050080A

SCREW, PAN, 5X8

Price €0.92
#26 93500-050250G

SCREW, PAN, 5X25

Price €0.84
#27 94101-10000

WASHER, PLAIN, 10MM

Price €0.86
#28 94301-10160

DOWEL PIN, 10X16

Price €2.33
#29 94301-14200

DOWEL PIN, 14X20

Price €2.04
#30 95701-0602500

BOLT, FLANGE, 6X25

Price €1.32
#31 95701-0603500

BOLT, FLANGE, 6X35

Price €1.32
#33 96700-0602000

BOLT, SOCKET, 6X20

Price €1.22
#34 96700-0603500

BOLT, SOCKET, 6X35

Price €1.48
#35 96700-0604500

BOLT, SOCKET, 6X45

Price €2.22
Contact us
#36 98069-56916

PLUG, SPARK (DPR6EA-9) (NGK)

Price €11.15
#36 98069-56926

PLUG, SPARK (X20EPR-U9) (DENSO)

Price €11.15
#36 98069-57916

PLUG, SPARK (DPR7EA-9) (NGK)

Price €6.41
#36 98069-57926

PLUG, SPARK (X22EPR-U9)

Price €6.41
#36 98069-58916

PLUG, SPARK (DPR8EA-9) (NGK)

Price €6.41
#36 98069-58926

PLUG, SPARK (X24EPR-U9) (DENSO)

Price €6.41
