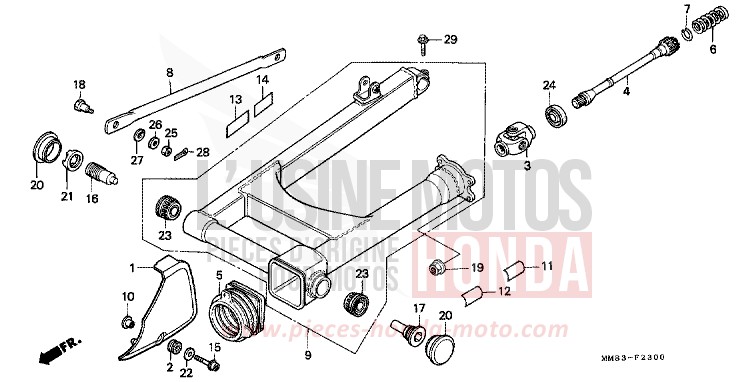

SWINGARM for Shadow CANDY SPECTRA RED (R176BA) from 1994

SWINGARM for Shadow CANDY SPECTRA RED (R176BA) from 1994
Reference
Product name
#1 11341-MAA-000

COVER COMP, L RR

Contact us
#2 17622-GB7-900

RUBBER, CUSHION

Price €7.73
#3 40200-MG8-003

JOINT COMP, YOKE

Contact us
#4 40201-MG8-003

SHAFT, PROPELLER

Contact us
#5 40207-MG8-000

BOOT, JOINT

Price €50.75
#6 40215-ME9-003

SPRING, PROPELLER SHAFT

Price €8.34
#7 40221-MB0-000

RING, STOPPER

Price €9.00
#8 43431-ME9-010

ARM, RR BRAKE STOPPER

Contact us
#9 52100-MM8-000ZA

SWINGARM ASSY NH1 (NH1 BLACK)

Contact us
#10 52159-KB7-000

COLLAR, CHAIN GUARD

Price €10.15
#12 87505-MAA-610

LABEL, TIRE

Contact us
#14 87512-MY0-870

LABEL, ACCESSORIES &amp LOADING

Price €9.46
Contact us
#15 90080-MG8-000

BOLT, FLANGE SOCKET, 6X25

Price €7.10
#16 90121-HA6-000

BOLT, R RR FORK PIVOT

Contact us
#17 90122-MB0-000

BOLT, L RR FORK PIVOT

Price €25.63
#18 90133-286-000

BOLT, RR BRAKE STOPPER ARM

Price €8.17
#19 90308-357-000

NUT, HEX, 10MM

Price €7.39
#20 90312-MB0-700

CAP, R LOCK NUT

Price €21.60
#21 90355-469-000

NUT, SWINGARM PIVOT LOCK

Price €17.94
#22 90503-SA0-000

WASHER, PLAIN, 9MM

Price €2.90
#23 91066-HA7-672

BEARING, TAPER ROLLER, 17X40X1325 (KOYO)

Price €40.99
#24 91261-ME9-005

OIL SEAL, 27X43X7

Price €13.20
#25 94001-080000S

NUT, HEX, 8MM

Price €1.16
#26 94101-08000

WASHER, PLAIN, 8MM

Price €0.72
#27 94111-10000

WASHER, SPRING, 10MM

Price €0.86
#28 94201-20150

PIN, SPLIT, 20X15

Price €0.77
#29 95701-0803200

BOLT, FLANGE, 8X32

Price €1.62
