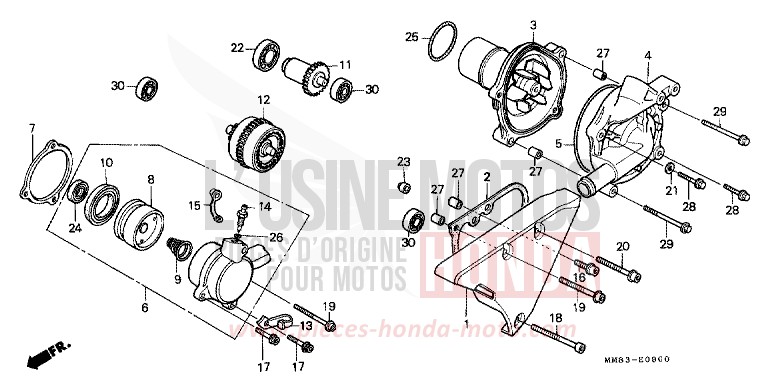

WATER PUMP for Shadow CANDY SPECTRA RED (R176BA) from 1994

WATER PUMP for Shadow CANDY SPECTRA RED (R176BA) from 1994
Reference
Product name
#1 11364-MM8-000

COVER, STARTER

Contact us
#2 11365-MM8-881

GASKET, STARTER COVER

Price €8.24
#3 19200-ME9-030

PUMP COMP, WATER

Price €387.40
Contact us
#4 19221-MAA-000

COVER, WATER PUMP

Contact us
#5 19226-ME9-000

GASKET, WATER PUMP COVER

Price €6.76
#6 22860-MM8-000

CYLINDER ASSY, CLUTCH SLAVE

Price €83.36
Contact us
#7 22862-MB0-000

INSULATOR, CLUTCH SLAVE CYLINDER

Price €15.07
#8 22863-MB0-003

PISTON, SLAVE CYLINDER

Price €49.22
#9 22864-MB0-003

SPRING, SLAVE CYLINDER

Price €9.73
#10 22865-MB0-003

CUP, PISTON

Price €21.07
#11 28130-MG8-000

SHAFT COMP, STARTER DRIVE (36T)

Price €69.83
Contact us
#12 28140-MG8-000

LIMITER ASSY, TORQUE

Price €446.77
#13 32111-MM8-000

CLAMPER, CORD

Price €9.00
Contact us
#14 43352-MG9-006

SCREW, BLEEDER

Price €10.39
#15 43353-461-771

CAP, BLEEDER

Price €9.28
#16 90012-ME5-000

BOLT, FLANGE SOCKET, 6X32

Price €9.20
Contact us
#17 90081-MG8-000

BOLT, FLANGE SOCKET, 6X35

Price €6.92
#18 90082-MM8-000

BOLT, SOCKET, 6X75

Contact us
#19 90083-MM8-000

BOLT, FLANGE SOCKET, 6X45

Price €4.75
Contact us
#20 90093-KL8-000

BOLT, FLANGE SOCKET, 6X40

Price €6.71
#21 90441-706-000

WASHER, SEALING, 6MM

Price €1.00
#22 91002-MG8-003

BEARING, RADIAL BALL, 6804 (KOYO)

Price €37.79
#23 91201-MG8-000

CAP, RUBBER

Price €7.36
#24 91209-MB0-003

OIL SEAL, 8X18X5

Price €5.11
#25 91302-MB0-013

O-RING, 3295X262 (ARAI)

Price €5.39
#26 91355-MG9-006

O-RING

Price €5.52
#27 94301-08140

DOWEL PIN, 8X14

Price €2.02
#28 95701-0602500

BOLT, FLANGE, 6X25

Price €1.32
#29 95701-0604500

BOLT, FLANGE, 6X45

Price €1.62
#30 96100-6000000

BEARING, RADIAL BALL, 6000

Price €12.44
