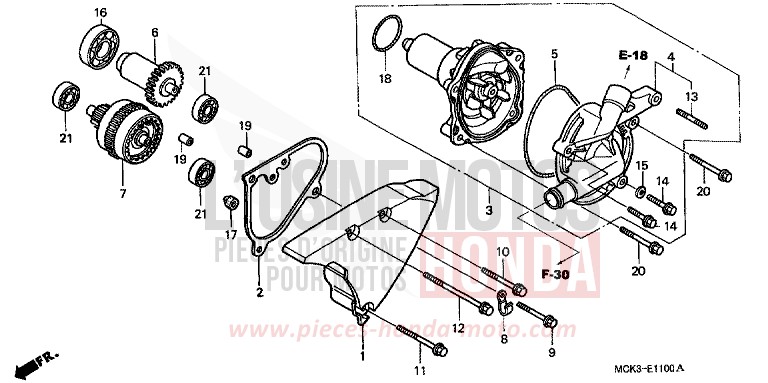

WATER PUMP for Shadow BLACK (NH1) from 2002

WATER PUMP for Shadow BLACK (NH1) from 2002
Reference
Product name
#1 11364-MAH-000

COVER, STARTER

Price €122.44
#2 11365-MM8-881 i

GASKET, STARTER COVER

Price €11.98
#3 19200-MAA-A00 i

PUMP ASSY, WATER

Price €568.92
#4 19221-MAH-000

COVER COMP, WATER PUMP

Price €155.39
#5 19226-ME9-000

GASKET, WATER PUMP COVER

Price €8.53
#6 28131-MCK-A00 i

GEAR, STARTER DRIVE (36T)

Price €119.28
#7 28140-MG8-000

LIMITER ASSY, TORQUE

Price €446.77
#8 35211-443-760

CLAMP, SWITCH CORD

Price €8.72
#9 90004-GHB-690 i

BOLT, FLANGE, 6X32 (NSHF)

Price €5.46
#10 90004-GHB-710 i

BOLT, FLANGE, 6X40 (NSHF)

Price €5.59
#11 90004-GHB-720

BOLT, FLANGE, 6X45 (NSHF)

Price €5.71
#12 90004-GHB-780

BOLT, FLANGE, 6X75 (NSHF)

Price €6.94
#13 90045-ZG1-770

BOLT, STUD, 6X25

Price €3.52
#14 90121-MV9-670 i

BOLT, FLANGE, 6X25

Price €1.99
#15 90463-ML7-000 i

WASHER, SEALING, 65MM

Price €4.62
#16 91002-MG8-003 i

BEARING, RADIAL BALL, 6804 (KOYO)

Price €22.84
#17 91201-MG8-000

CAP, RUBBER

Price €8.23
#18 91302-MB0-013 i

O-RING, 3295X262 (ARAI)

Price €6.30
#19 94301-08140 i

DOWEL PIN, 8X14

Price €2.05
#20 95701-0604500 i

BOLT, FLANGE, 6X45

Price €1.66
#21 96100-6000000 i

BEARING, RADIAL BALL, 6000

Price €12.70
