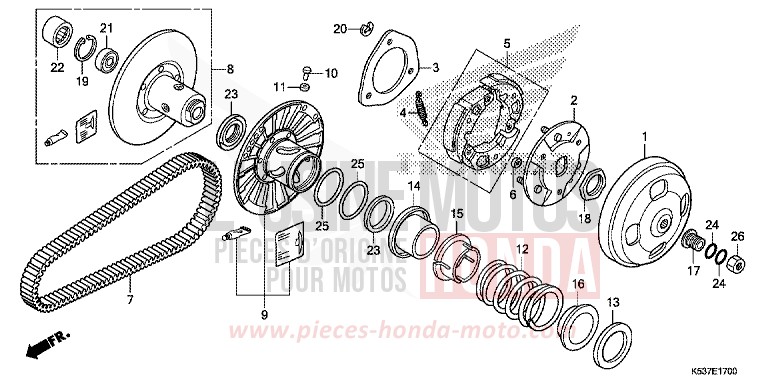

DRIVEN FACE for SH300A PEARL SPLENDOR RED (R369) from 2018

DRIVEN FACE for SH300A PEARL SPLENDOR RED (R369) from 2018
Reference
Product name
#1 22100-KFG-000

OUTER COMP, CLUTCH

Price €140.72
#2 22350-KFG-000

PLATE COMP, DRIVE

Price €60.18
#3 22361-KFG-000

PLATE, CLUTCH SIDE

Price €20.40
#4 22401-KFG-000

SPRING, CLUTCH

Price €5.87
#5 22535-KVZ-630

WEIGHT SET, CLUTCH

Price €161.57
#6 22804-GB2-000

RUBBER, CLUTCH DAMPER

Price €4.14
#7 23100-KTW-901 i

BELT, DRIVE (BANDO)

Price €145.16
#8 23205-KTW-900

FACE SET, DRIVEN

Price €472.34
#9 23224-KTW-900

FACE SET, MOVABLE DRIVEN

Price €345.82
#10 23225-KM1-010

PIN, ROLLER GUIDE

Price €6.38
#11 23226-KM1-010

ROLLER, GUIDE

Price €6.64
#12 23233-K53-D00

SPRING, DRIVEN FACE (WHITE)

Price €37.94
#13 23236-KSV-J10

SEAT, DRIVEN FACE SPRING

Price €14.57
#14 23237-KSV-J10

COLLAR, SEAL

Price €33.11
#15 23238-KSV-J10

COLLAR A, SPRING GUIDE

Price €40.99
#16 23239-KSV-J10

COLLAR B, SPRING GUIDE

Price €18.68
#17 23415-KVZ-K10 i

COLLAR, DRIVE SHAFT

Price €69.40
#18 90202-KM1-000

NUT, SPECIAL, 30MM

Price €11.04
#19 90603-KSV-J10

CIRCLIP, INTERNAL, 28MM

Price €7.91
#20 90605-166-720 i

CIRCLIP, 7MM

Price €6.52
#21 91002-GA7-701 i

BEARING, RADIAL BALL, 6902U (NTN)

Price €24.04
#21 91002-GA7-702 i

BEARING, RADIAL BALL, 6902U (FUJIKOSHI)

Price €24.04
#22 91002-KPB-003 i

BEARING, NEEDLE, 25X33X18

Price €45.40
#23 91211-K53-D01

SEAL, DRIVEN FACE, 40X47X4

Price €6.94
#24 91301-K04-930

O-RING, 165X15

Price €3.18
#25 91352-KM1-003

O-RING, 47X19 (NOK)

Price €6.30
#25 91352-KM1-005

O-RING, 47X19 (ARAI)

Price €6.30
#26 94001-122000S i

NUT, HEX, 12MM

Price €1.42
