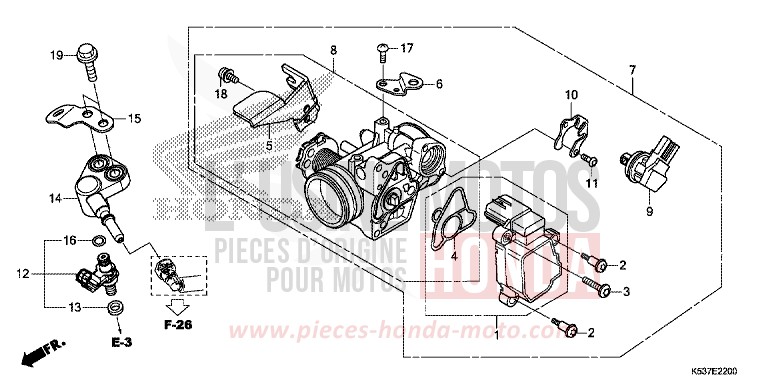

THROTTLE BODY for SH300A PEARL SPLENDOR RED (R369) from 2018

THROTTLE BODY for SH300A PEARL SPLENDOR RED (R369) from 2018
Reference
Product name
#1 16060-KZP-671

SENSOR SET

Price €177.00
#2 16081-KYJ-901

SCREW, TORX, 5X87

Price €6.00
#3 16082-KYJ-901

SCREW, TORX, 5X17

Price €5.15
#4 16083-KTR-941

O-RING, THROTTLE BODY

Price €5.68
#5 16169-K04-931

STAY, WIRE

Price €33.85
#6 16196-K53-D01

STAY, HARNESS CLAMPER

Price €24.04
#7 16400-K53-DB1

THROTTLE BODY ASSY (GQB0A A)

Price €401.53
#8 16410-K53-DB1

BODY SET

Price €299.72
#9 16430-KTW-911

VALVE ASSY, IDLE AIR CONTROL

Price €68.02
#10 16432-GFM-901

PLATE, IDLE AIR CONTROL VALVE

Price €15.96
#11 16433-HN8-A61

SCREW, TORX

Price €6.42
#12 16450-K53-D01

INJECTOR ASSY, FUEL

Price €142.57
#13 16472-KPC-D50

RING, SEAL

Price €5.21
#14 17560-K53-D00

JOINT COMP, INJECTOR

Price €57.41
#15 17571-K53-D00

STAY, HARNESS

Price €23.68
#16 91301-GGL-J01

O-RING, 63X22

Price €13.78
#17 93500-050101H

SCREW, PAN, 5X10

Price €0.62
#18 93892-0501218

SCREW-WASHER, 5X12

Price €1.32
#19 95701-0602500

BOLT, FLANGE, 6X25

Price €1.32
