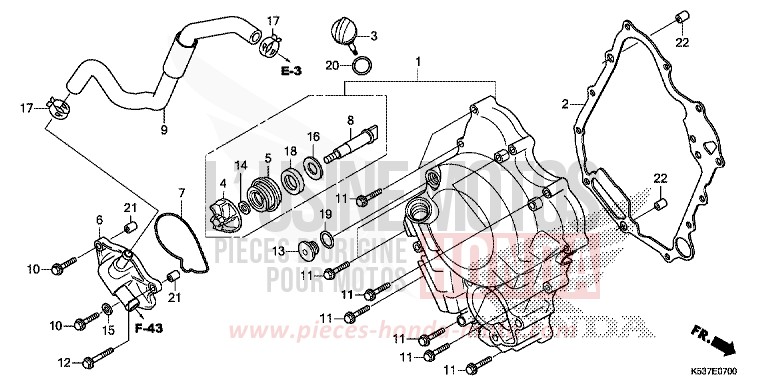

RIGHT CRANKCASE COVER/WATER PUMP for SH300A PEARL SPLENDOR RED (R369) from 2018

RIGHT CRANKCASE COVER/WATER PUMP for SH300A PEARL SPLENDOR RED (R369) from 2018
Reference
Product name
#1 11300-K53-D00

COVER ASSY, R

Price €395.04
#2 11394-KTW-901 i

GASKET, R CRANKCASE COVER

Price €29.50
#3 15651-K53-D00

GAUGE, OIL LEVEL

Price €23.56
#4 19215-KTW-900

IMPELLER, WATER PUMP

Price €70.12
#5 19217-MAL-300

SEAL, MECHANICAL

Price €98.41
#6 19220-K04-930

COVER COMP, WATER PUMP

Price €70.12
#7 19226-KTW-900

GASKET, WATER PUMP COVER

Price €7.52
#8 19241-K04-930

SHAFT, WATER PUMP

Price €15.89
#9 19527-KTW-900

HOSE, WATER BYPASS

Price €58.18
#10 90010-K04-930

BOLT, FLANGE, 6X32 (NSHF)

Price €2.98
#11 90011-K04-930

BOLT, FLANGE, 6X40 (NSHF)

Price €2.98
#12 90013-K04-930

BOLT, FLANGE, 6X75 (NSHF)

Price €2.98
#13 90084-KWA-930 i

CAP, 14MM

Price €7.32
#14 90423-KJ9-000 i

WASHER, 72X13X12

Price €5.99
#15 90441-706-000

WASHER, SEALING, 6MM

Price €1.02
#16 90599-767-C10

WASHER, THRUST, 12X23X2

Price €1.94
#17 90678-MR1-690

CLIP, HOSE

Price €6.94
#18 91202-K53-D01

OIL SEAL, 12X26X5

Price €8.56
#19 91303-377-000 i

O-RING, 138X25

Price €9.58
#20 91307-035-000 i

O-RING, 18X3

Price €1.44
#21 94301-08140 i

DOWEL PIN, 8X14

Price €2.05
#22 94301-10160 i

DOWEL PIN, 10X16

Price €2.38
