FRAME BODY 🏍️ SH300A
TOOLS 🏍️ SH300A

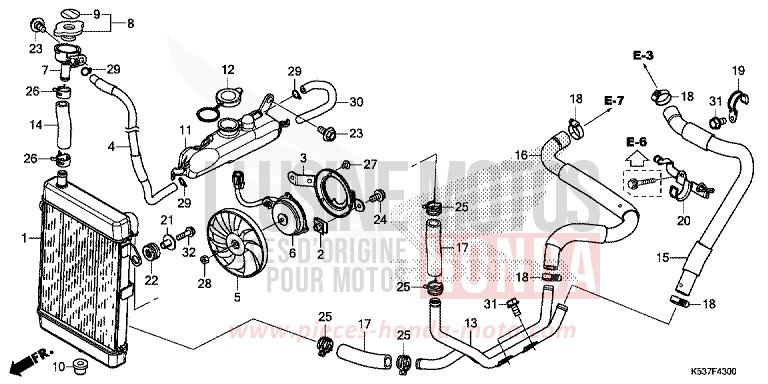

RADIATOR for SH300A PEARL SIENA RED (R320) from 2016

RADIATOR for SH300A PEARL SIENA RED (R320) from 2016
Reference
Product name
#1 19010-K53-D01

RADIATOR COMP

Price €359.05
#2 19014-KEA-003

NUT, POSE (6MM)

Price €7.20
#3 19015-K53-D01

SHROUD COMP

Price €101.70
#4 19017-K53-D00

TUBE, RESERVE TANK

Price €20.04
#5 19020-KVZ-631

FAN COMP. REFROIDISSEMENT

Price €94.07
#6 19030-K53-D01

MOTOR ASSY, FAN

Price €133.99
#7 19035-K04-931

GOULOT OF REMPLISSAGE

Price €28.19
#8 19037-MCA-G61

CAP COMP. RADIATOR (T.WHEEL)

Price €77.52
#9 19046-MCA-G61

LABEL OF CAP OF RADIATOR (T.WHEEL)

Price €14.70
#10 19051-MB2-000

RUBBER OF MOUNTING OF RADIATOR

Price €9.37
#11 19101-K53-D00

RESERVE TANK

Price €45.84
#12 19104-MB0-700 i

CAP, RESERVE TANK

Price €19.08
#13 19120-K53-D00

PIPE COMP, WATER

Price €278.74
#14 19126-K53-D00

HOSE, FILLER

Price €6.73
#15 19501-K53-D00

HOSE A, WATER

Price €27.66
#16 19502-K53-D00

HOSE B, WATER

Price €31.70
#17 19506-KTW-900

WATER HOSE C

Price €12.02
#18 19507-KA3-830

CLIP B OF FLEXIBLE WATER

Price €19.08
#19 19531-KTW-900

CLAMPER A, WATER HOSE

Price €5.05
#20 19532-K53-D00

CLAMPER B, WATER HOSE

Price €20.93
#21 61104-428-010 i

BAND OF GUARD-BOUE FRONT (WHITE)

Price €12.07
#21 61104-428-730

BAND OF GUARD-BOUE FRONT (BLACK)

Price €12.07
#22 61304-415-000

RUBBER OF MOUNTING OF HOUSING OF HEADLIGHT

Price €9.37
#23 90111-162-000 i

FLANGE BOLT, 6MM

Price €7.55
#24 90120-GHB-601

WASHER A BOLT, 6X12

Price €7.55
#25 90701-KWN-901

CLIP, WATER HOSE, 24MM

Price €3.97
#26 90701-MF5-003

WATER HOSE CLIP, 21MM

Price €12.35
#27 93891-0400607

VIS A TETE A WASHER, 4X6

Price €0.79
#28 90315-MFL-003

FLANGE NUT, 3MM

Price €6.38
#29 95002-02120

CLAMP, TUBE (B12)

Price €1.08
#30 95005-7519020 i

TUBE 73X190 (95005-75001-20M)

Price €6.43
#31 95701-0601200 i

FLANGE BOLT, 6X12

Price €1.15
#32 95701-0602200 i

FLANGE BOLT, 6X22

Price €1.42
