TRANSMISSION 🏍️ SH150AD
LEFT CRANKCASE 🏍️ SH150AD

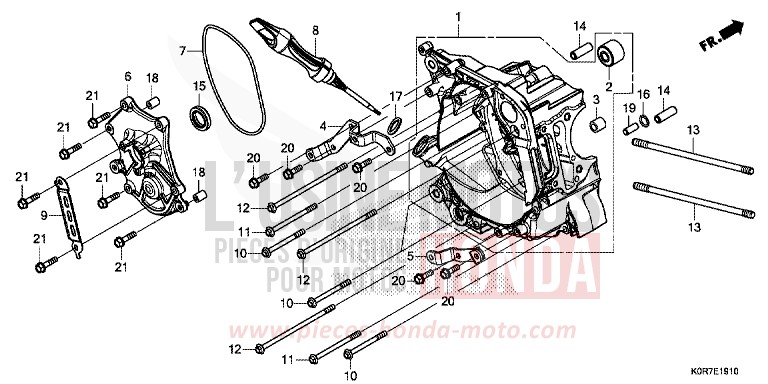

RIGHT CRANKCASE for SH150AD PEARL SPLENDOR RED (R369) from 2020

RIGHT CRANKCASE for SH150AD PEARL SPLENDOR RED (R369) from 2020
Reference
Product name
#1 11100-K0R-V00 i

CRANKCASE COMP, R

Price €285.52
#2 11103-KVB-930 i

BUSH, ENGINE HANGER RUBBER

Price €11.51
#3 11205-GBC-300

BUSH, MAIN STAND

Price €11.29
#4 11320-K0R-V00 i

PLATE COMP, RIGIDITY UPPER

Price €6.67
#5 11330-K0R-V00 i

PLATE COMP, RIGIDITY LOWER

Price €4.31
#6 11361-K0R-V00

BASE, STATOR

Price €22.30
#7 11363-K0R-V00

GASKET, STATOR BASE

Price €1.87
#8 15651-K0R-V00

GAUGE, OIL LEVEL

Price €6.53
#9 32961-K0R-V00

CLAMPER, AC GENERATOR CORD

Price €2.46
#10 90006-K0R-V00

BOLT, FLANGE, 6X65 (LNSH)

Price €1.37
#11 90007-K0R-V00

BOLT, FLANGE, 6X80 (LNSH)

Price €1.37
#12 90008-K0R-V00

BOLT, FLANGE, 6X130 (LNSH)

Price €1.68
#13 90031-K0R-V00

BOLT A, STUD, 8X2092

Price €3.65
#14 90702-KWN-900 i

DOWEL PIN, SPECIAL, 63X10X30

Price €3.97
#15 91201-K35-J01

OIL SEAL, 208X32X6 (ARAI)

Price €1.74
#16 91303-001-010 i

O-RING, 8MM

Price €6.88
#17 91307-035-000 i

O-RING, 18X3

Price €1.44
#18 94301-08100 i

DOWEL PIN, 8X10

Price €1.81
#19 94301-08200 i

DOWEL PIN, 8X20

Price €2.05
#20 95701-0602000 i

BOLT, FLANGE, 6X20

Price €1.08
#21 95701-0602500 i

BOLT, FLANGE, 6X25

Price €1.34
