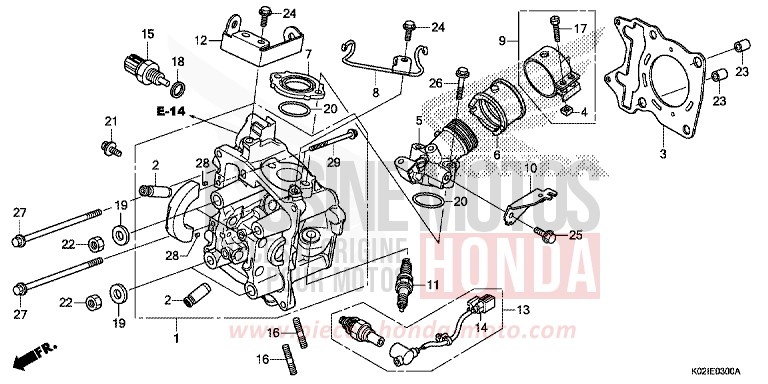

CYLINDER HEAD for SH150 PEARL SIENA RED (R320) from 2016

CYLINDER HEAD for SH150 PEARL SIENA RED (R320) from 2016
Reference
Product name
#1 12010-K02-902

HEAD ASSY, CYLINDER

Price €463.44
#2 12204-KWN-P00

GUIDE, VALVE (OS)

Price €26.05
#3 12251-KZY-701

GASKET, CYLINDER HEAD

Price €18.32
#4 16222-MV4-300

NUT, SQUARE, 5MM

Price €3.23
#5 17111-K02-D00

PIPE, INLET

Price €49.37
#6 17112-KZY-700

INSULATOR, THROTTLE BODY

Price €18.74
#7 17119-KZY-700

INSULATOR, IN PIPE

Price €11.92
#8 17219-K01-900

CLAMPER, BREATHER TUBE

Price €13.88
#9 17255-KWN-900

BAND, INSULATOR

Price €14.20
#10 17533-K01-900

STAY, FUEL HOSE

Price €4.56
#11 31917-KPH-901

PLUG, SPARK (CPR7EA-9) (NGK)

Price €10.90
#12 32962-K01-900

STAY, ENGINE SUB CORD

Price €3.86
#13 36532-KZR-601

SENSOR, OXYGEN

Price €213.36
#14 36533-KZR-601

CORD COMP, OXYGEN SENSOR

Price €69.91
#15 37870-MBG-003

SENSOR ASSY, WATER TEMPERATURE

Price €98.24
#16 90004-KGF-910

BOLT, STUD, 7X17

Price €5.44
#17 90005-MEJ-000

BOLT, RECESSED, 5X22

Price €3.12
#18 90454-MC7-000

WASHER, SPECIAL, 12MM

Price €5.53
#19 90483-KWN-900

WASHER, 8MM

Price €3.68
#20 91301-KRJ-901

O-RING, 29X2

Price €6.02
#21 93404-0601200

BOLT-WASHER, 6X12

Price €1.06
#22 94030-08280

NUT, HEX, 8MM

Price €0.78
#23 94301-10160

DOWEL PIN, 10X16

Price €2.33
#24 95701-0601200

BOLT, FLANGE, 6X12

Price €1.13
#25 95701-0601400

BOLT, FLANGE, 6X14

Price €1.13
#26 95701-0604000

BOLT, FLANGE, 6X40

Price €1.22
#27 95701-0609500

BOLT, FLANGE, 6X95

Price €3.00
#28 94303-03050

DOWEL PIN, 3X5

Price €1.88
#29 96001-0608000

BOLT, FLANGE, 6X80

Price €1.78
