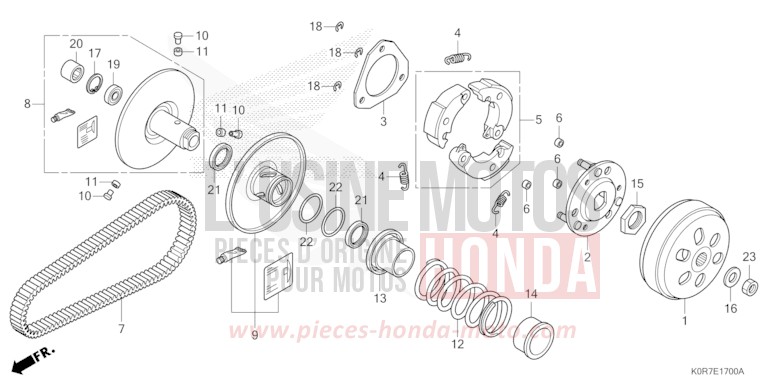

DRIVEN FACE for SH125AD PEARL SPLENDOR RED (R369) from 2020

DRIVEN FACE for SH125AD PEARL SPLENDOR RED (R369) from 2020
Reference
Product name
#1 22100-KWN-900

OUTER COMP, CLUTCH

Price €146.78
#2 22350-GFM-900

PLATE COMP, DRIVE

Price €55.40
#2 22350-K97-T01

PLATE COMP, DRIVE

Price €70.84
#2 22350-KVB-900

PLATE COMP, DRIVE

Price €57.91
#3 22361-K29-V81

PLATE, CLUTCH SIDE

Price €19.15
#4 22401-KGG-910

SPRING, CLUTCH

Price €5.50
#5 22535-K0R-V00

WEIGHT SET, CLUTCH

Price €106.80
#6 22804-148-000

RUBBER, CLUTCH DAMPER

Price €2.96
#7 23100-K0R-D01

BELT, DRIVE

Price €45.90
#8 23205-K0R-V00

FACE SET, DRIVEN

Price €207.70
#9 23224-K0R-V00

FACE SET, MOVABLE DRIVEN

Price €104.20
#10 23225-KSY-900

PIN, ROLLER GUIDE

Price €4.50
#11 23226-KVB-900

ROLLER, GUIDE

Price €4.13
#12 23233-KZY-902

SPRING, DRIVEN FACE

Price €27.90
#13 23237-K40-F00

COLLAR, SEAL

Price €29.76
#14 23238-KWN-900

COLLAR, SPRING

Price €12.01
#15 90202-KN7-670

NUT, SPECIAL, 28MM

Price €8.34
#16 90441-GY6-940

WASHER, 122X29X25

Price €8.62
#17 90603-KSV-J10

CIRCLIP, INTERNAL, 28MM

Price €6.48
#18 90605-166-720

CIRCLIP, 7MM

Price €4.19
#19 91002-GA7-701

BEARING, RADIAL BALL, 6902U (NTN)

Price €21.01
#19 91004-GGC-G01

BEARING, RADIAL BALL, 6902U (FCC)

Price €17.96
#19 91009-K93-T01

BEARING, RADIAL BALL, 6902U (FCC)

Price €25.04
#19 91009-KVY-961

BEARING, RADIAL BALL, 6902U (NSK)

Price €27.31
#20 91002-KFG-003

BEARING, NEEDLE, 22X29X18

Price €30.88
#21 91211-K81-N01

SEAL, DRIVEN FACE, 34X41X4 (FCC)

Price €8.83
#22 91384-KVB-900

O-RING, 388X19

Price €4.60
#23 94030-12200

NUT, HEX, 12MM

Price €1.39
