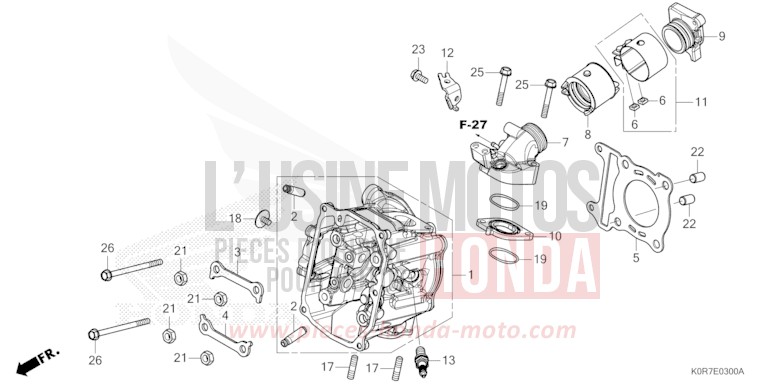

CYLINDER HEAD for SH125AD PEARL SPLENDOR RED (R369) from 2020

CYLINDER HEAD for SH125AD PEARL SPLENDOR RED (R369) from 2020
Reference
Product name
#1 12200-K0R-V00

HEAD COMP, CYLINDER

Price €340.36
#2 12205-KYJ-305

GUIDE, EX VALVE (OS)

Price €24.78
#3 12212-K0R-V00 i

PLATE, CYLINDER HEAD IN

Price €7.57
#4 12213-K0R-V00 i

PLATE, CYLINDER HEAD EX

Price €7.57
#5 12251-K0R-V01

GASKET, CYLINDER HEAD

Price €8.59
#6 16222-MV4-300

NUT, SQUARE, 5MM

Price €4.88
#7 17110-K0R-V00

PIPE COMP, IN

Price €55.13
#8 17112-K0R-V00

INSULATOR, THROTTLE BODY

Price €8.36
#9 17115-K0R-V00

PIPE B, INLET

Price €13.52
#10 17119-K0R-V00

INSULATOR, IN PIPE

Price €6.26
#11 17255-K0R-V00

BAND, INSULATOR

Price €9.91
#12 17533-K0R-V00

STAY COMP, HOSE CLAMPER

Price €4.62
#13 31917-K0R-V01

PLUG, SPARK (LMAR8L-9) (NGK)

Price €19.34
#17 90004-KGF-910

BOLT, STUD, 7X17

Price €6.46
#18 90022-K40-F00

BOLT-WASHER, 6X12

Price €4.18
#19 91302-K40-F00

O-RING, IN PIPE

Price €13.84
#21 94030-08280

NUT, HEX, 8MM

Price €0.79
#22 94301-10160 i

DOWEL PIN, 10X16

Price €2.38
#23 95701-0601400 i

BOLT, FLANGE, 6X14

Price €1.15
#25 95701-0604000 i

BOLT, FLANGE, 6X40

Price €1.25
#26 95701-0609000 i

BOLT, FLANGE, 6X90

Price €2.05
