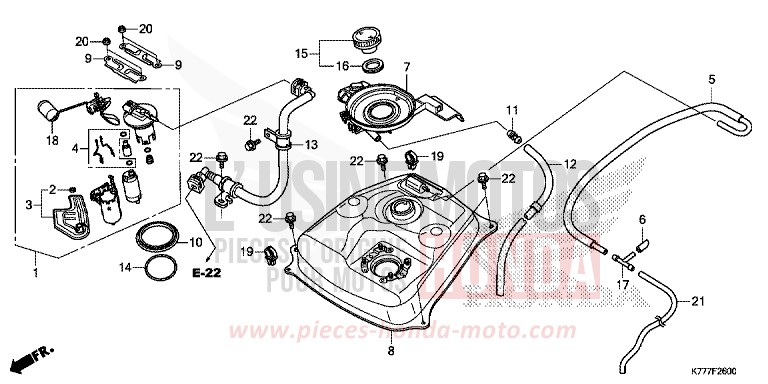

FUEL TANK for SH125AD PEARL SPLENDOR RED (R369) from 2019

FUEL TANK for SH125AD PEARL SPLENDOR RED (R369) from 2019
Reference
Product name
#1 16700-K77-V01

PUMP UNIT ASSY, FUEL

Price €370.18
#2 16706-K81-N01 i

O-RING (P7)

Price €3.46
#2 16706-KVB-S51 i

O-RING (P7)

Price €3.46
#3 16707-KZV-T01

FILTER SET

Price €23.24
#4 16798-K53-B01

O-RING SET

Price €45.06
#5 17414-K78-U00

TUBE, FUEL TANK BREATHER

Contact us
#6 17416-K78-U00

TUBE, AIR

Contact us
#7 17505-K01-900

TRAY, FUEL TANK

Price €18.36
#8 17510-K77-D00

TANK COMP, FUEL

Price €356.14
#9 17517-GGL-J00

RETAINER, FUEL PUMP

Price €5.21
#10 17518-GHB-603

SEAL, DUST (TSUANG HINE INDUSTRIAL)

Price €1.10
#11 17525-KBN-900

JOINT, FUEL TUBE

Price €12.01
#12 17526-K77-V00

TUBE, FUEL TRAY DRAIN

Contact us
#13 17570-K01-901

HOSE COMP, FUEL FEED

Price €115.79
#14 17572-GHB-601

O-RING, FUEL PUMP (ARAI)

Price €20.76
#15 17620-K01-901 i

CAP COMP, FUEL FILLER

Price €21.55
#16 17632-383-831 i

PACKING, FUEL FILLER CAP

Price €16.22
#17 36191-KV3-700

JOINT, AIR FILTER

Price €17.34
#18 37800-K77-V01

FUEL UNIT

Price €164.06
#19 90659-734-K51 i

CLIP, HARNESS (NIFCO)

Price €1.69
#20 94050-06000 i

NUT, FLANGE, 6MM

Price €0.79
#21 95001-4570040 i

TUBE, FUEL, 45X700 (95001-45001-60M)

Price €11.82
#22 95701-0601200 i

BOLT, FLANGE, 6X12

Price €1.15
