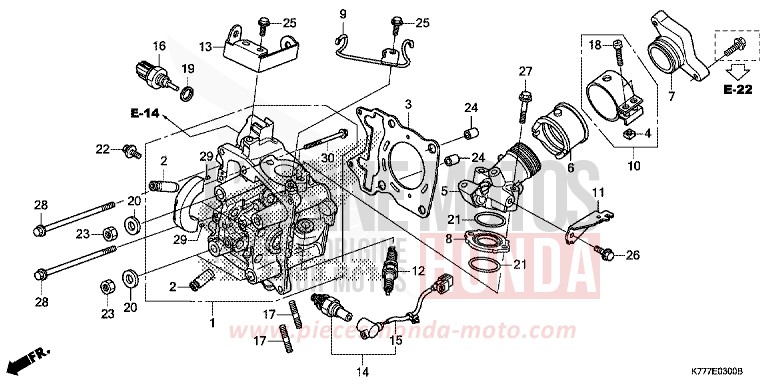

CYLINDER HEAD for SH125AD PEARL SPLENDOR RED (R369) from 2019

CYLINDER HEAD for SH125AD PEARL SPLENDOR RED (R369) from 2019
Reference
Product name
#1 12010-K77-V00

HEAD ASSY, CYLINDER

Price €329.00
#2 12204-KWN-P00

GUIDE, VALVE (OS)

Price €24.78
#3 12251-K77-V01

GASKET, CYLINDER HEAD

Price €10.01
#4 16222-MV4-300

NUT, SQUARE, 5MM

Price €4.88
#5 17111-K77-D00

PIPE, INLET

Price €42.38
#6 17112-KZY-700

INSULATOR, THROTTLE BODY

Price €22.27
#7 17115-K77-V00

PIPE B, INLET

Price €20.90
#8 17119-KZY-700

INSULATOR, IN PIPE

Price €9.32
#9 17219-K01-900

CLAMPER, BREATHER TUBE

Price €19.78
#10 17255-KWN-900

BAND, INSULATOR

Price €4.88
#11 17533-K01-900

STAY, FUEL HOSE

Price €6.13
#12 31917-K77-V01

PLUG, SPARK (MR7G-9E)

Price €20.89
#13 32962-K01-900

STAY, ENGINE SUB CORD

Price €5.39
#14 36532-K01-611

SENSOR, OXYGEN

Price €120.30
#15 36533-KZR-601

CORD COMP, OXYGEN SENSOR

Price €47.93
#16 37870-MBG-003 i

SENSOR ASSY, WATER TEMPERATURE

Price €98.24
#17 90004-KGF-910

BOLT, STUD, 7X17

Price €6.46
#18 90005-MEJ-000

BOLT, RECESSED, 5X22

Price €3.70
#19 90454-MC7-000

WASHER, SPECIAL, 12MM

Price €5.99
#20 90483-KWN-900

WASHER, 8MM

Price €3.28
#21 91301-KRJ-901 i

O-RING, 29X2

Price €7.34
#22 93404-0601200 i

BOLT-WASHER, 6X12

Price €1.08
#23 94030-08280

NUT, HEX, 8MM

Price €0.79
#24 94301-10160 i

DOWEL PIN, 10X16

Price €2.38
#25 95701-0601200 i

BOLT, FLANGE, 6X12

Price €1.15
#26 95701-0601400 i

BOLT, FLANGE, 6X14

Price €1.15
#27 95701-0604000 i

BOLT, FLANGE, 6X40

Price €1.25
#28 95701-0609500

BOLT, FLANGE, 6X95

Price €3.06
#29 94303-03050 i

DOWEL PIN, 3X5

Price €1.92
#30 96001-0608000 i

BOLT, FLANGE, 6X80

Price €1.81
