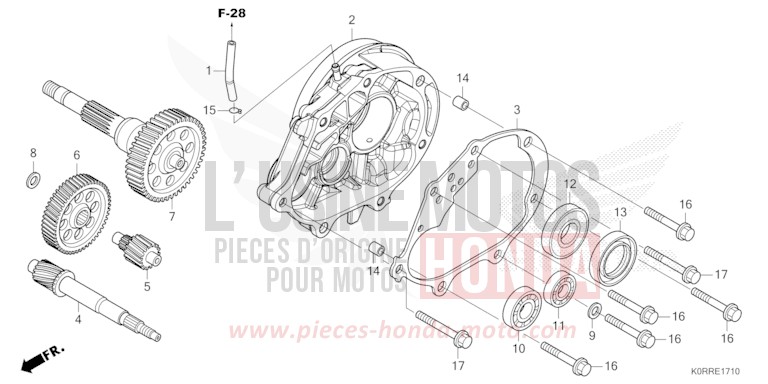

TRANSMISSION for SH125 MAT PEARL PACIFIC BLUE (PB397) from 2024

TRANSMISSION for SH125 MAT PEARL PACIFIC BLUE (PB397) from 2024
Reference
Product name
# 11211-K0R-V00

TUBE, MISSION BREATHER

Price €4.03
# 21200-K0R-V00

CASE COMP, MISSION

Price €69.90
# 21395-KZR-600

GASKET, TRANSMISSION CASE

Price €17.05
# 23411-K0R-V00

DRIVESHAFT (16T)

Price €44.39
# 23421-K0R-V00

COUNTERSHAFT (13T)

Price €30.47
# 23422-K0R-V00

GEAR, COUNTER (54T)

Price €26.30
# 23430-K0R-V00

GEAR COMP, FINAL (44T)

Price €72.11
# 90452-KGH-900 i

SPECIAL WASHER, 12MM

Price €1.86
# 90495-MN5-000 i

WASHER SEALING, 8MM

Price €5.71
# 91005-K2S-N01 i

BEARING, RADIAL BALL, 6301 (FAG)

Price €8.69
# 91006-KZR-601

RADIAL BALL BEARING, 6201 (NTN)

Price €7.55
# 91009-KWN-901

BEARING, RADIAL BALL, 6205UU (NTN)

Price €24.36
# 91204-K35-J01

OIL SEAL, 34X52X7 (ARAI)

Price €2.39
# 94301-10120

STUD, 10X12

Price €2.08
# 95002-50000 i

PIPE CLIP (C9)

Price €0.78
# 95701-0804500 i

FLANGE BOLT, 8X45

Price €1.74
# 95701-0805500 i

FLANGE BOLT, 8X55

Price €2.87
#1 22100-K0W-NA0

OUTER COMP, CLUTCH

Price €49.97
#2 22350-GFM-900

PLATE COMP, DRIVE

Price €25.67
#2 22350-K97-T01

PLATE COMP, DRIVE

Price €19.20
#2 22350-KVB-900

PLATE COMP, DRIVE

Price €20.48
#3 22361-K29-V81 i

PLATE, CLUTCH SIDE

Price €4.87
#4 22401-KGG-910

SPRING, CLUTCH

Price €8.27
#5 22535-K0R-V00

WEIGHT SET, CLUTCH

Price €123.68
#6 22804-148-000

RUBBER D'DAMPER CLUTCH

Price €3.01
#7 23100-K0R-A01

BELT, DRIVE

Price €47.28
#8 23205-K0R-V40

FACE SET, DRIVEN

Price €113.06
#9 23224-K0R-V00

FACE SET, MOVABLE DRIVEN

Price €63.46
#10 23225-KSY-900

PIN, ROLLER GUIDE

Price €3.16
#11 23226-KVB-900 i

ROLLER, GUIDE

Price €2.52
#12 23233-KZY-902 i

SPRING, DRIVEN FACE

Price €29.22
#13 23237-K40-F00 i

COLLAR, SEAL

Price €12.19
#14 23238-KZR-600

COLLAR, SPRING

Price €7.07
#15 90202-KN7-670 i

NUT, SPECIAL, 28MM

Price €11.04
#16 90441-GY6-940 i

WASHER, 12.2X29X2.5

Price €9.68
#17 90603-KSV-J10

CIRCLIP, INTERNAL, 28MM

Price €7.91
#18 90605-166-720 i

SPRENGRING, 7MM

Price €6.52
#19 91002-GA7-701 i

RADIAL BALL BEARING, 6902U (NTN)

Price €24.04
#19 91004-GGC-G01

BEARING, RADIAL BALL, 6902U (FCC)

Price €18.97
#19 91009-K93-T01

BEARING, RADIAL BALL, 6902U (FCC)

Price €12.79
#19 91009-KVY-961 i

BEARING, RADIAL BALL, 6902U (NSK)

Price €16.61
#20 91002-KFG-003 i

ROULEMENT A AIGUILLES, 22X29X18

Price €32.00
#21 91211-K81-N01

SEAL, DRIVEN FACE, 34X41X4 (FCC)

Price €3.36
#22 91384-KVB-900 i

O-RING, 388X19

Price €5.58
#23 94030-12200 i

NUT HEX., 12MM

Price €1.42
