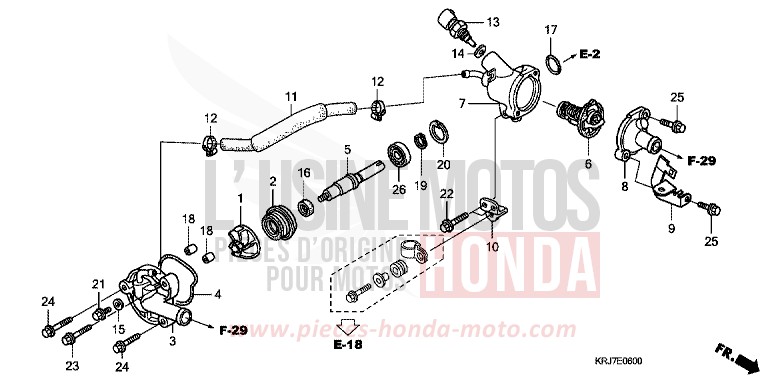

WATER PUMP for S-Wing ABS QUASAR SILVER METALLIC (NHA48) from 2011

WATER PUMP for S-Wing ABS QUASAR SILVER METALLIC (NHA48) from 2011
Reference
Product name
#1 19215-KGF-910

IMPELLER, WATER PUMP

Price €23.15
#2 19217-657-023

SEAL, MECHANICAL

Price €73.10
#3 19220-KRJ-900

COVER COMP, WATER PUMP

Price €52.79
#4 19226-KRJ-900

GASKET, WATER PUMP COVER

Price €9.43
#5 19231-KGF-910

SHAFT, WATER PUMP

Price €43.67
#6 19300-KGF-911

THERMOSTAT

Price €109.84
#7 19310-KRJ-900

CASE COMP, THERMOSTAT

Price €70.92
#8 19315-KGF-910

COVER, THERMOSTAT

Price €21.40
#9 19320-KRJ-790

PLATE, THERMOSTAT COVER

Price €11.78
#10 19346-KGF-910

PLATE, SOLENOID BASE

Price €3.89
#11 19504-KRJ-900

HOSE D, WATER

Price €25.38
#12 19507-MK4-000

CLAMP, BREATHER HOSE

Price €13.19
#13 37870-KRJ-901

SENSOR ASSY, WATER TEMPERATURE

Price €75.68
#14 90454-MC7-000

WASHER, SPECIAL, 12MM

Price €5.53
#15 90478-700-000

WASHER A, 6MM

Price €0.66
#16 91203-KK3-830

OIL SEAL, 14X22X5

Price €4.13
#17 91301-KV7-671

O-RING, 148X19 (ARAI)

Price €6.88
#18 94301-08140

DOWEL PIN, 8X14

Price €2.02
#19 94510-10000

CIRCLIP, EXTERNAL, 10MM

Price €0.86
#20 94520-26000

CIRCLIP, INTERNAL, 26MM

Price €1.70
#21 95701-0601200

BOLT, FLANGE, 6X12

Price €1.13
#22 95701-0602000

BOLT, FLANGE, 6X20

Price €1.06
#23 95701-0602500

BOLT, FLANGE, 6X25

Price €1.32
#24 95701-0603500

BOLT, FLANGE, 6X35

Price €1.32
#25 96001-0601600

BOLT, FLANGE, 6X16

Price €1.22
#26 96100-6000000

BEARING, RADIAL BALL, 6000

Price €12.44
