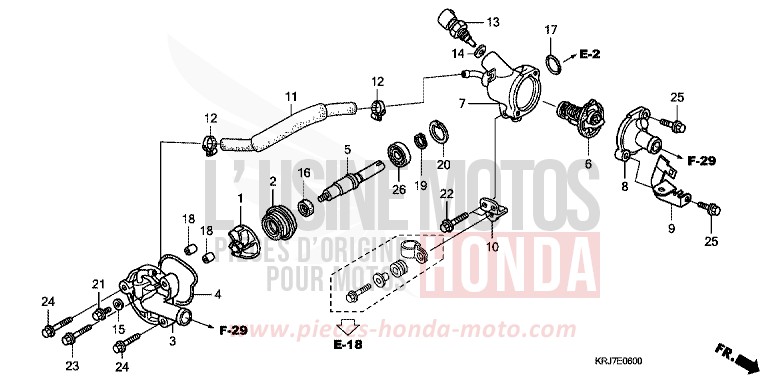

WATER PUMP for S-Wing ABS PEARL HARVEST GREEN (GY136) from 2011

WATER PUMP for S-Wing ABS PEARL HARVEST GREEN (GY136) from 2011
Reference
Product name
#1 19215-KGF-910

IMPELLER, WATER PUMP

Price €51.62
#2 19217-657-023 i

SEAL, MECHANICAL

Price €77.46
#3 19220-KRJ-900

COVER COMP, WATER PUMP

Price €201.22
#4 19226-KRJ-900

GASKET, WATER PUMP COVER

Price €9.23
#5 19231-KGF-910

SHAFT, WATER PUMP

Price €58.54
#6 19300-KGF-911 i

THERMOSTAT

Price €130.88
#7 19310-KRJ-900

CASE COMP, THERMOSTAT

Price €175.22
#8 19315-KGF-910

COVER, THERMOSTAT

Price €37.57
#9 19320-KRJ-790

PLATE, THERMOSTAT COVER

Price €11.78
#10 19346-KGF-910

PLATE, SOLENOID BASE

Price €3.58
#11 19504-KRJ-900

HOSE D, WATER

Price €36.95
#12 19507-MK4-000

CLAMP, BREATHER HOSE

Price €18.26
#13 37870-KRJ-901 i

SENSOR ASSY, WATER TEMPERATURE

Price €75.68
#14 90454-MC7-000

WASHER, SPECIAL, 12MM

Price €5.99
#15 90478-700-000

WASHER A, 6MM

Price €0.67
#16 91203-KK3-830 i

OIL SEAL, 14X22X5

Price €4.19
#17 91301-KV7-671 i

O-RING, 148X19 (ARAI)

Price €7.63
#18 94301-08140 i

DOWEL PIN, 8X14

Price €2.05
#19 94510-10000 i

CIRCLIP, EXTERNAL, 10MM

Price €0.88
#20 94520-26000

CIRCLIP, INTERNAL, 26MM

Price €1.74
#21 95701-0601200 i

BOLT, FLANGE, 6X12

Price €1.15
#22 95701-0602000 i

BOLT, FLANGE, 6X20

Price €1.08
#23 95701-0602500 i

BOLT, FLANGE, 6X25

Price €1.34
#24 95701-0603500 i

BOLT, FLANGE, 6X35

Price €1.34
#25 96001-0601600 i

BOLT, FLANGE, 6X16

Price €1.25
#26 96100-6000000 i

BEARING, RADIAL BALL, 6000

Price €12.70
