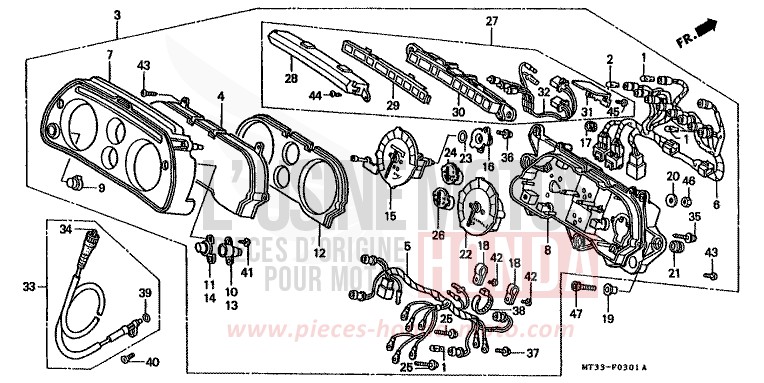

METER (ST1100AN/AP/AR) for Pan-European ABS LAPIS BLUE METALLIC (PB257D) from 1993

METER (ST1100AN/AP/AR) for Pan-European ABS LAPIS BLUE METALLIC (PB257D) from 1993
Reference
Product name
#1 34908-KM1-671

BULB, WEDGE BASE (T65) (12V 3W)

Price €3.25
#2 34908-MB9-871

BULB, WEDGE BASE (T10) (12V 17W) (STANLEY)

Price €4.08
#3 37100-MY3-781

METER ASSY, COMBINATION (KPH)

Contact us
#4 37102-MS2-601

LENS ASSY, METER

Price €61.08
#5 37105-MT3-003

SOCKET COMP

Price €74.83
Contact us
#6 37106-MY3-781

SOCKET COMP, PILOT BOX

Contact us
#7 37110-MY3-781

VISOR ASSY

Price €149.08
Contact us
#8 37111-MT3-003

CASE ASSY

Price €142.00
Contact us
#9 37112-MT3-003

KNOB

Price €18.72
#10 37120-MY3-781

CASE, R PILOT

Contact us
#11 37121-MY3-781

LENS ASSY, R SMOKE

Contact us
#12 37130-MM5-008

PLATE, REFLECTING

Price €46.16
Contact us
#13 37130-MY3-781

CASE, L PILOT

Contact us
#14 37131-MY3-781

LENS ASSY, L SMOKE

Contact us
#15 37200-MT3-612

SPEEDOMETER ASSY (KPH)

Contact us
#16 37211-MR7-008

BOSS, ELBOW

Price €98.83
Contact us
#17 37215-KR3-672

RUBBER, MOUNTING

Price €8.09
#18 37215-MB6-831

CLAMP

Price €7.34
#19 37243-KB7-960

COLLAR, SPEEDOMETER MOUNTING

Price €8.62
#20 37244-MA6-008

WASHER, PLAIN

Price €7.57
#21 37244-MB2-008

RUBBER, METER MOUNTING

Price €9.47
#22 37250-MT3-602

TACHOMETER ASSY (RPM)

Price €365.09
#23 37264-MR7-008

SEAL

Price €2.27
Contact us
#24 37300-MY3-781

METER ASSY, FUEL

Contact us
#25 37305-KE5-008

SCREW-WASHER, 3X22

Price €7.16
#26 37400-MT3-013

METER ASSY, TEMPERATURE

Contact us
#27 37600-MY3-781

BOX ASSY, PILOT

Contact us
#28 37601-MY3-781

LENS, SMOKE

Contact us
#29 37602-MY3-781

PANEL

Contact us
#30 37603-MY3-781

CASE ASSY, UNDER

Contact us
#31 37604-MY3-781

COVER

Contact us
#32 37605-MY3-781

INDICATOR COMP, LED

Price €78.22
#33 44830-MT3-000

CABLE ASSY, SPEEDOMETER

Price €60.17
#34 44831-443-720

CABLE, SPEEDOMETER INNER

Price €16.96
#35 90032-ML7-671

SCREW, TAPPING, 4X36

Contact us
#36 90035-166-008

SCREW-WASHER, SPECIAL, 4X10

Price €7.16
#37 90108-GN2-008

SCREW-WASHER, 3X10

Price €5.74
#38 90673-SK7-A01

BAND, HARNESS (BLACK)

Price €4.73
#39 91301-027-000

O-RING, 68X19

Price €4.84
#40 93700-050200G

SCREW, OVAL, 5X20

Price €0.77
#45 93913-22420

SCREW, TAPPING, 3X16

Contact us
#42 93913-24220

SCREW, TAPPING, 4X12

Price €0.77
#43 93903-24520

SCREW, TAPPING, 4X20

Price €0.62
#44 93911-24410

SCREW, TAPPING, 4X16

Price €0.62
#46 94001-060000S

NUT, HEX, 6MM

Price €1.16
#47 96600-0602500

BOLT, SOCKET, 6X25

Price €1.48
