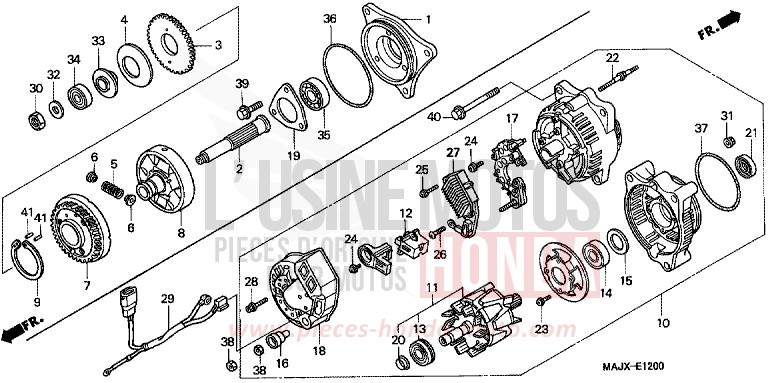

GENERATOR for Pan-European CANDY GRACEFUL RED-U (R151) from 2000

GENERATOR for Pan-European CANDY GRACEFUL RED-U (R151) from 2000
Reference
Product name
#1 11202-MAJ-G20

BASE, AC GENERATOR

Price €121.61
Contact us
#2 13411-MAJ-G20

SHAFT, AC GENERATOR DAMPER

Price €312.38
#3 13432-MT3-000

SUB GEAR, AC GENERATOR DRIVEN (50T)

Contact us
#4 13435-MN5-300

SPRING, AC GENERATOR FRICTION

Price €20.36
#5 13436-MT3-003

SPRING, AC GENERATOR DAMPER

Price €5.82
Contact us
#6 13438-MT3-300

SEAT, DAMPER SPRING

Contact us
#7 13441-MT3-000

GEAR COMP, AC GENERATOR DRIVEN (50T)

Price €435.29
#8 13450-MT3-000

FLYWHEEL, AC GENERATOR (B)

Contact us
#9 14447-MR8-003

SPRING A, CAMSHAFT GEAR

Contact us
#10 31100-MAJ-G41

GENERATOR ASSY, AC

Price €1,177.48
Contact us
#11 31101-MAJ-G41

ROTOR ASSY

Price €589.55
Contact us
#12 31105-MAJ-G41

HOLDER ASSY, BRUSH

Price €47.33
#13 31111-MAJ-G41

BEARING, RR

Price €39.48
#14 31114-MAJ-G41

BEARING, FR

Price €38.71
#15 31116-MAJ-G41

COVER, BEARING

Price €13.64
Contact us
#16 31119-MAJ-G41

BUSH, INSULATION

Price €16.40
#17 31127-MAJ-G41

RECTIFIER ASSY

Price €296.42
Contact us
#18 31135-MAJ-G41

COVER, RR END

Price €72.37
#19 31138-MT3-300

SET RING

Price €8.81
#20 31138-PD1-004

COVER, BEARING

Price €9.23
#21 31141-MAJ-G41

OIL SEAL

Price €15.32
#22 31145-PE9-941

BOLT, STUD

Price €9.79
#23 31146-MAJ-G41

SCREW

Price €6.43
#24 31147-PT0-003

SCREW-WASHER

Price €3.23
#25 31148-PD1-004

SCREW-WASHER, 4X25

Price €2.76
#26 31149-PZ1-003

SCREW

Price €2.74
#27 31150-PZ3-003

REGULATOR ASSY ()

Price €321.41
#28 31153-PZ1-003

BOLT

Price €6.72
#29 32130-MAJ-G40

SUB HARNESS, AC GENERATOR

Price €35.48
Contact us
#30 90204-MN5-000

NUT, HEX, 14MM

Price €7.85
#31 90231-PD1-014

NUT-WASHER, 5MM

Price €7.72
#32 90408-MN5-000

WASHER, 142X23X26

Price €8.02
#33 90413-MT3-000

COLLAR, GENERATOR FRICTION SPRING

Contact us
#34 91002-MT3-003

BEARING, RADIAL BALL, 6003

Price €38.30
#35 91004-MT3-003

BEARING, RADIAL BALL, 20X47X105

Price €35.68
#36 91302-MM4-003

O-RING, 90X23 (ARAI)

Price €12.64
#37 91304-MAJ-G41

O-RING

Price €7.75
#38 94001-060800S

NUT, HEX, 6MM

Price €1.04
#39 95701-0601600

BOLT, FLANGE, 6X16

Price €1.15
#40 95701-0807000

BOLT, FLANGE, 8X70

Price €2.02
#41 96220-30085

ROLLER, 3X85

Price €0.38
