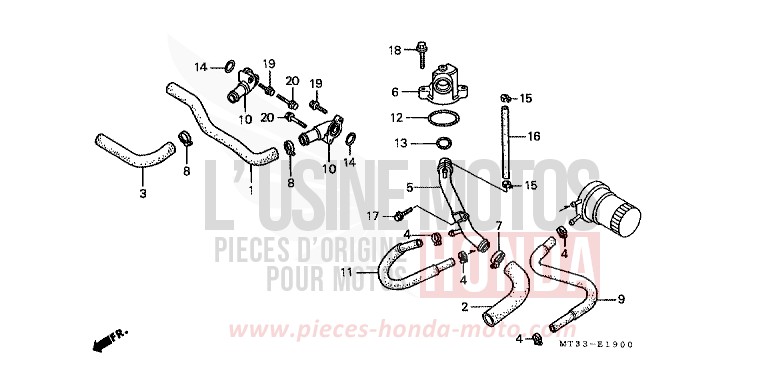

WATER PIPE for Pan-European BLACK (NH1D) from 1994

WATER PIPE for Pan-European BLACK (NH1D) from 1994
Reference
Product name
#1 19504-MT3-000

HOSE, L THERMOSTAT

Price €39.78
#2 19505-MT3-000

HOSE B, WATER

Price €30.92
#3 19506-MT3-000

HOSE, R THERMOSTAT

Price €33.84
#4 19507-MK4-620

CLIP OF HOSE OF RESPIRATION

Price €16.85
#5 19510-MT3-000

PIPE COMP, WATER

Price €75.86
Contact us
#6 19514-MT3-000

COVER, WATER

Price €80.78
#7 19516-MB6-000

WATER HOSE CLIP

Price €23.09
#8 19517-ML7-691 i

CLIP, TUBE, 22-29MM

Price €18.73
#9 19520-MT3-000

HOSE COMP, OIL COOLER (A)

Price €28.48
Contact us
#10 19523-MT3-000

CONNECTION, WATER

Price €38.26
#11 19525-MT3-000

HOSE COMP, OIL COOLER (B)

Price €43.52
Contact us
#12 91311-KE8-000 i

O-RING, 47.5X2

Price €6.18
#13 91315-MT3-003

SEAL, WATER PIPE

Price €4.72
#14 91331-PC9-003 i

O-RING, 21.2X2.4 (ARAI)

Price €5.75
#15 95002-4100008 i

PIPE CLIP (D10)

Price €1.66
#16 95005-5538020

TUBE, 53X380 (95005-55001-20M)

Price €10.20
Contact us
#17 95701-0601400 i

FLANGE BOLT, 6X14

Price €1.15
#18 95701-0602800 i

FLANGE BOLT, 6X28

Price €1.25
#19 96001-0602200 i

FLANGE BOLT, 6X22

Price €1.50
#20 96001-0604000 i

FLANGE BOLT, 6X40

Price €1.74
