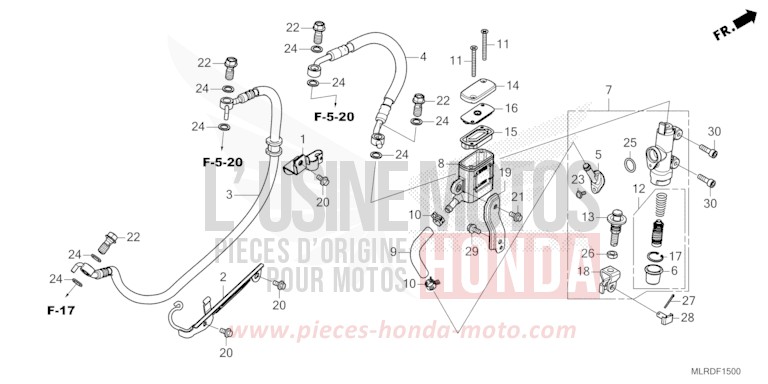

REAR BRAKE MASTER CYLINDER for NX500 PEARL HORIZON WHITE (NHB61) from 2025

REAR BRAKE MASTER CYLINDER for NX500 PEARL HORIZON WHITE (NHB61) from 2025
Reference
Product name
#1 43155-MKP-DN0

CLIP A, BRAKE REAR

Price €8.99
#2 43156-MKP-J00

SUPPORT B, BRAKE REAR

Price €20.42
#3 43310-MKP-DQ1

COMP DURITE A, AR FREIN

Price €51.16
#4 43313-MKP-DN1

COMP. HOSE B, REAR BRAKE

Price €48.12
#5 43503-MN5-006

MASTER CYLINDER CONNECTOR (NISSIN)

Price €10.16
#6 43504-MB2-006 i

BOOT COMP.

Price €13.37
#7 43510-MKP-D81

SUB-ASSY. MASTER-CYLINDER, BRAKE REAR (NISSIN)

Price €122.42
#8 43511-MKP-J01

BOWL COMP. OIL

Price €15.04
#9 43512-MKP-J01

HOSE OF MASTER-CYLINDER REAR

Price €10.02
#10 43514-KS6-701 i

CLIP OF HOLE OIL OF MASTER CYLINDER

Price €23.64
#11 43516-KYJ-901

SCREW A HEAD PLATE, 4X60

Price €3.97
#12 43520-MB2-315 i

SET OF PISTON OF MASTER CYLINDER (NISSIN)

Price €102.52
#13 43530-KV3-701

ROD COMP. POUSSE

Price €46.37
#14 45513-K33-D01

CAP OF MASTER CYLINDER

Price €16.66
#15 45520-GW0-911

DIAPHRAGME

Price €21.40
#20 90013-GHB-600

FLANGE BOLT, 6X10

Price €5.96
#16 45521-GW0-911

PLATE OF DIAPHRAGME

Price €19.15
#21 90013-GHB-610

FLANGE BOLT, 6X12

Price €5.96
#17 46182-MEL-D21

VISSERIE

Price €7.36
#18 46504-KV6-702 i

GASKET OF CALIPER OF BRAKE

Price €12.42
#19 50279-MKP-J00

SUPPORT OF MANCHETTE OIL

Price €16.34
#22 90145-MS9-612 i

BOLT OIL, 10X22 (SAGA)

Price €16.85
#24 90545-300-000 i

WASHER OF BOLT OIL

Price €5.30
#23 90508-K21-921

SCREW A HEAD A WASHER, 4X12

Price €3.97
#27 94201-20150 i

SPLIT PIN, 2.0X15

Price €0.78
#25 91212-422-006 i

O-RING, 14.8X2.4

Price €6.53
#26 94002-080000S i

NUT HEX., 8MM

Price €1.07
#28 95015-54000 i

AXE D, ARTICULATION

Price €3.00
#29 95701-0601207 i

FLANGE BOLT, 6X12

Price €1.15
#30 96600-0602008

BOLT OF SOCKET, 6X20

Price €1.04
