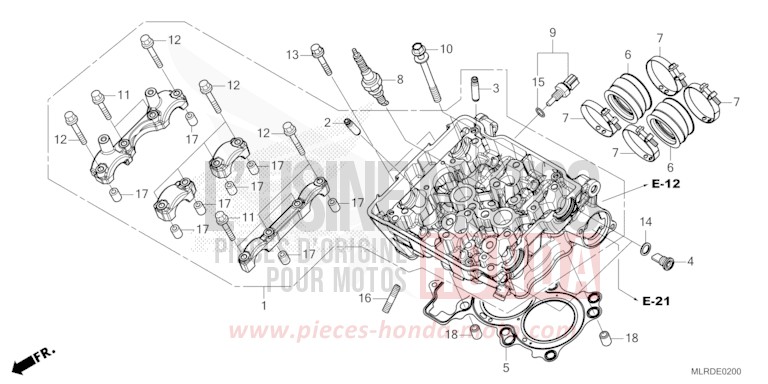

CYLINDER HEAD for NX500 MAT GUNPOWDER BLACK METALLIC (NH436) from 2025

CYLINDER HEAD for NX500 MAT GUNPOWDER BLACK METALLIC (NH436) from 2025
Reference
Product name
#1 12010-MKP-DA1

ASSY. CYLINDER HEAD

Price €1,498.96
#2 12204-KYJ-305

GUIDE OF INTAKE VALVE (O.S.)

Price €24.78
#5 12251-MGZ-J01

GASKET OF CYLINDER HEAD

Price €44.35
#3 12205-KYJ-305

GUIDE OF VALVE EXHAUST (O.S.)

Price €24.78
#4 12207-MGZ-J00

BOLT SEALING, 12MM

Price €13.63
#6 16211-MKP-DN0

INSULATOR OF BODY OF PAPILLON

Price €15.60
#7 16217-MGZ-J00

STRIPE D'INSULATOR

Price €6.68
#14 90418-KYJ-900

WASHER, 12.2X17X1.5

Price €3.28
#8 31916-KRM-841 i

SPARK PLUG IGNITION (CPR8EA-9) (NGK)

Price €17.09
#9 37870-KZR-601

ASSY. SENSOR, TEMPERATURE WATER (PANASONIC)

Price €28.84
#15 91307-PLC-004

O-RING, 9.5X1.9 (PANASONIC)

Price €5.29
#10 90007-MGZ-J00

WASHER A BOLT, 9X100

Price €9.55
#17 94301-08140 i

STUD, 8X14

Price €2.05
#11 90017-KYJ-900

FLANGE BOLT, 6X32

Price €2.98
#12 90019-KYJ-900

FLANGE BOLT, 6X39.5

Price €2.98
#13 90023-GHB-720

FLANGE BOLT, 6X35

Price €6.58
#16 92900-080223E

STUD, 8X22

Price €2.78
#18 94301-12160

STUD D'ASSEMBLAGE A, 12X16

Price €2.08
