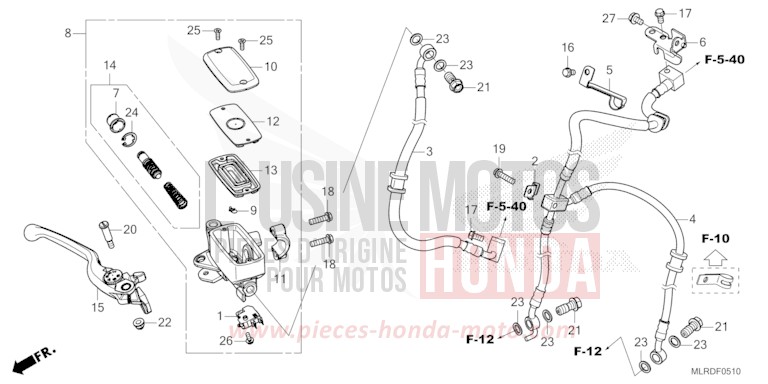

FRONT BRAKE MASTER CYLINDER for NX500 MAT GUNPOWDER BLACK METALLIC (NH436) from 2024

FRONT BRAKE MASTER CYLINDER for NX500 MAT GUNPOWDER BLACK METALLIC (NH436) from 2024
Reference
Product name
#1 35340-MGS-D31

SWITCH ASSY, FR STOP (ALPS)

Price €41.32
#2 38514-MKH-D00

CLAMPER B, SENSOR CORD

Price €10.19
#3 45125-MLR-D81

HOSE COMP A, FR BRAKE

Price €65.36
#4 45126-MKP-DQ1

HOSE COMP B, FR BRAKE

Price €155.50
#5 45155-MKP-DQ0

CLAMPER A, FR BRAKE HOSE

Price €12.08
#6 45160-MKP-DN0

STAY COMP, FR BRAKE HOSE

Price €15.26
#7 45504-410-003

BOOT COMP

Price €15.22
#8 45510-MJE-D01

CYLINDER SUB ASSY, FR MASTER (NISSIN)

Price €357.11
#9 45512-MA6-006

PROTECTOR

Price €74.21
#10 45513-MM5-016

CAP, MASTER CYLINDER (NISSIN)

Price €52.61
#11 45517-166-006

HOLDER, MASTER CYLINDER

Price €22.57
#12 45518-MM5-006

PLATE, DIAPHRAGM

Price €15.23
#13 45520-MM5-006

DIAPHRAGM

Price €33.04
#14 45530-471-831

CYLINDER SET, MASTER

Price €83.28
#15 53170-MKK-D01

LEVER ASSY, R HANDLE

Price €75.06
#16 90013-GHB-600

BOLT, FLANGE, 6X10

Price €5.36
#17 90013-GHB-610

BOLT, FLANGE, 6X12

Price €5.98
#18 90013-GHB-660

BOLT, FLANGE, 6X22

Price €5.69
#19 90113-MKN-D50

BOLT, FLANGE, 6X235

Price €9.02
#20 90114-MA5-671

BOLT, HANDLE LEVER PIVOT

Price €11.93
#21 90145-MS9-612

BOLT, OIL, 10X22 (SAGA)

Price €13.14
#22 90202-KCW-870

NUT, CAP, 6MM

Price €5.93
#23 90545-300-000

WASHER, OIL BOLT

Price €6.41
#24 90651-MA5-671

CIRCLIP

Price €5.83
#25 93600-040121G

SCREW, FLAT, 4X12

Price €0.76
#26 93893-0401217

SCREW-WASHER, 4X12

Price €1.06
#27 95701-0601007

BOLT, FLANGE, 6X10

Price €0.97
