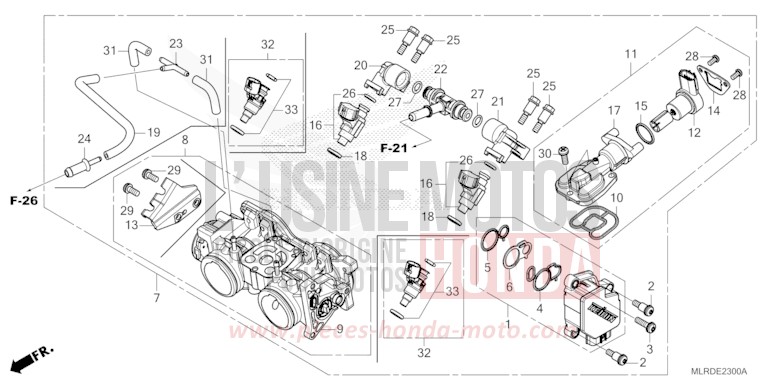

THROTTLE BODY for NX500 GRAPHITE BLACK (NHB01) from 2026

THROTTLE BODY for NX500 GRAPHITE BLACK (NHB01) from 2026
Reference
Product name
#1 16060-MKG-L01

ASSY. OF SENSOR

Price €135.29
#2 16081-KPH-701 i

SCREW OF CLAMP 5X8.7

Price €7.08
#3 16082-KPH-701 i

SCREW OF CLAMP 5X17

Price €7.08
#4 16083-MGZ-D01

O-RING, SENSOR

Price €36.72
#5 16084-MGZ-D01

O-RING, SENSOR

Price €34.39
#6 16085-MGZ-D01

PLATE

Price €44.39
#7 16400-MLR-DL1

ASSY. BODY OF PAPILLON (GQB1G A)

Contact us
#8 16410-MLR-DL1

SET OF BODY

Contact us
#10 16428-MGZ-D01

O-RING, VALVE OF CONTROL INJECTION AIR

Price €37.08
#11 16430-MJW-J01

ASSY. CLAPET, CONTROL AIR RALENTI

Price €349.44
#12 16431-MJP-G51

ASSY. ENGINE

Price €297.94
#14 16433-MEW-921

PLATE, CLAPET OF CONTROL D' AIR OF RALENTI

Price €24.89
#15 16435-MFJ-D01

O-RING, 17.8X1.9

Price €7.34
#17 16451-MGZ-D01

COMP. BODY, CLAPET OF CONTROL AIR OF RALENTI

Price €165.59
#19 16482-MGZ-A01

TUBE, PRUGE

Price €260.03
#20 16610-MLA-BA1

PIPE FUEL (A)

Price €57.32
#21 16620-MLA-BA1

PIPE FUEL (B)

Price €57.32
#22 16630-MFJ-D00

CONNECTOR EN T, FUEL

Price €54.25
#23 17201-MG9-000

CONNECTOR A OF PIPE OF DIDE

Price €27.36
#24 19126-KM1-010 i

CONNECTOR OF TUBE

Price €6.80
#25 90021-MGZ-D02 i

BOLT, EPAULE

Price €6.58
#27 91301-PLC-000

O-RING, 7.47X3.6

Price €5.29
#28 93500-040081H

CYLINDRICAL HEAD SCREW, 4X8

Price €0.78
#30 93892-0501418 i

SCREW A HEAD A WASHER, 5X14

Price €0.88
#31 95005-3504520 i

TUBE, 3.5X45 (95005-35001-20M)

Price €1.63
#32 16450-MLR-B41

ASSY. INJECTEUR FUEL

Price €99.24
#33 16470-MLA-BA1

ASSY. GASKET, INJECTEUR

Price €48.07
