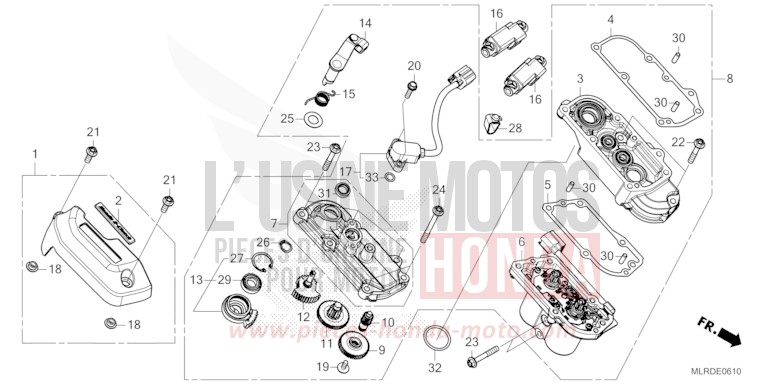

CLUTCH ACTUATOR for NX500 GRAPHITE BLACK (NHB01) from 2026

CLUTCH ACTUATOR for NX500 GRAPHITE BLACK (NHB01) from 2026
Reference
Product name
#1 11370-MLR-DN0

COMP OF COVER, LINK CLUTCH

Price €47.94
#2 11378-MKY-E80

COMP PLATE, EMBLEM

Price €34.22
#3 11410-MKY-E80

COMP HOUSING, CLUTCH ACTUATOR

Price €99.19
#4 11412-K2Y-J71

GASKET SEALING, COVER CLUTCH ACTUATOR

Price €7.84
#5 11413-K2Y-J71

GASKET SEALING, HOUSING CLUTCH ACTUATOR

Price €7.84
#6 11420-MKY-E81

CASE ASSY., CLUTCH ACTUATOR MOTOR

Price €537.04
#7 11430-MKY-E80

COMP COVER, CLUTCH ACTUATOR

Price €116.47
#8 22200-MLR-DN0

ACTUATOR ASSY., CLUTCH

Contact us
#9 22661-MKY-E81

GEAR A, ACTUATOR CLUTCH (51T)

Price €75.72
#10 22662-MKY-E80

SHAFT A, ACTUATOR CLUTCH (17T)

Price €66.34
#11 22671-MKY-E81

GEAR B, ACTUATOR CLUTCH (62T/11T)

Price €100.15
#12 22680-MKY-E81

ASSY. GEAR C, ACTUATOR CLUTCH (12T/9T)

Price €129.42
#13 22690-MKY-E80

ASSY. GEAR D, ACTUATOR CLUTCH (8T)

Price €131.58
#14 22810-MLR-DN0

LEVER COMP CLUTCH

Price €39.18
#15 22815-MKY-E80

SPRING OF LEVER CLUTCH

Price €2.35
#16 32105-MLB-DB0

SUSPENSION D'COUPLING (025)

Price €7.40
#17 38800-MKY-E81

ASSEMBLAGE OF SENSEUR D'ANGLE (110DEGREE)

Price €235.33
#18 61101-K55-600

BAND OF FIXING OF GUARD- BOUE FRONT

Price €1.18
#19 90002-MKY-E80

BOLT-SPECIAL WASHER, 5X14

Price €2.98
#20 90003-MKY-E80

FLANGE BOLT, 5X20

Price €2.98
#21 90026-GHB-650

FLANGE BOLT, 6X18

Price €5.46
#22 90026-GHB-720

FLANGE BOLT, 6X35 (S-NSHF)

Price €2.83
#23 90026-GHB-740

FLANGE BOLT, 6X40

Price €6.20
#24 90026-GHB-780

FLANGE BOLT, 6X60 (S-NSHF)

Price €2.83
#25 90525-MBZ-610 i

WASHER

Price €5.71
#26 90601-MKY-E81

CIRCLIP OUTER, 12MM

Price €3.97
#27 90602-MKY-E81

CIRCLIP INNER, 24MM

Price €6.66
#28 90650-KZZ-J80

STRIPE RUBBER (35MM)

Price €7.04
#29 91002-MKY-E81

RADIAL BALL BEARING, 6901ZZ

Price €9.18
#30 91101-MKY-E81

ROLLER, 5X178

Price €3.56
#31 91204-MKY-E81

GASKET SEALING OIL, 12X18X5

Price €1.92
#32 91301-MKY-E81

O-RING, 28X26

Price €4.86
#33 91308-HN0-A10

O-RING, SENSEUR D'ANGLE

Price €6.06
