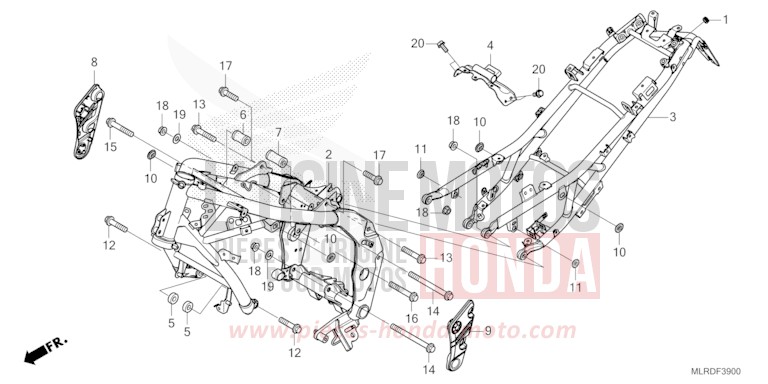

FRAME BODY for NX500 GRAND PRIX RED (R380) from 2024

FRAME BODY for NX500 GRAND PRIX RED (R380) from 2024
Reference
Product name
#1 11344-MB0-000

GROMMET A, RR COVER (8X16X66)

Price €9.56
#3 50240-MKP-J80ZA

RAIL COMP, SEAT NH303M (NH303M MAT AXIS GRAY...

Price €1,383.80
#4 50295-MGZ-J00

BRACKET COMP, FUEL TANK

Price €37.36
#5 50351-MGZ-J01

COLLAR A, ENGINE HANGER

Price €17.20
#6 50353-MGZ-J00

COLLAR B, R ENGINE HANGER

Price €27.52
#7 50354-MGZ-J00

COLLAR B, L ENGINE HANGER

Price €31.20
#8 50401-MJW-J00

COVER, R PIVOT

Price €13.13
#9 50451-MJW-J00

COVER, L PIVOT

Price €13.24
#10 83551-300-000

GROMMET, AIR CLEANER CASE

Price €9.37
#11 83551-376-000

GROMMET, SIDE COVER

Price €5.86
#12 90101-MKP-DN0

BOLT, FLANGE, 10X40 (DR)

Price €11.76
#14 90104-KYJ-900

BOLT, FLANGE, 10X146

Price €11.76
#15 90166-GHB-760

BOLT, FLANGE, 10X65 (DR)

Price €11.56
#16 90166-GHB-780

BOLT, FLANGE, 10X75 (DR)

Price €12.98
#17 90168-S2A-010

BOLT, FLANGE, 10X35

Price €4.43
#18 94050-10000

NUT, FLANGE, 10MM

Price €2.88
#19 94101-10800

WASHER, PLAIN, 10MM

Price €1.21
#20 95701-0601408

BOLT, FLANGE, 6X14

Price €1.13
#2 50100-MLR-D80ZA

BODY COMP, FRAME NH303M (NH303M MAT AXIS GRAY...

Price €1,200.35
#13 90101-MLR-D80

BOLT, FLANGE, 10X45

Price €13.42
