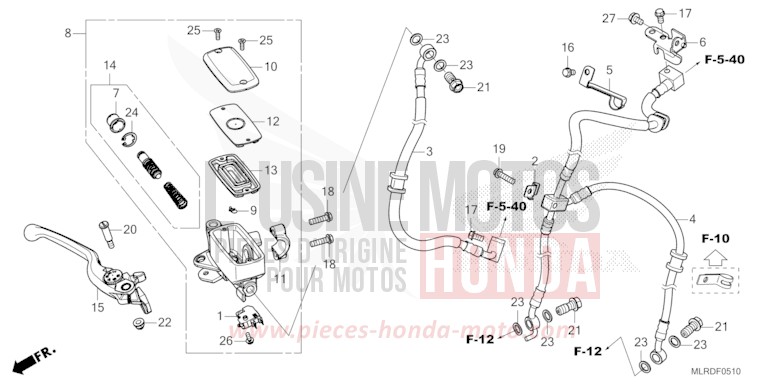

FRONT BRAKE MASTER CYLINDER for NX500 GRAND PRIX RED (R380) from 2024

FRONT BRAKE MASTER CYLINDER for NX500 GRAND PRIX RED (R380) from 2024
Reference
Product name
#1 35340-MGS-D31

ASSY. SWITCH STOP FRONT

Price €52.01
#2 38514-MKH-D00

FLANGE B, CORDON SENSOR

Price €11.71
#4 45126-MKP-DQ1

HOSE COMP, BRAKE FRONT B

Price €201.83
#5 45155-MKP-DQ0

FLANGE A OF HOSE OF BRAKE FRONT

Price €10.04
#6 45160-MKP-DN0

COMP. STAY, FRONT HOSE OF BRAKE

Price €16.20
#7 45504-410-003 i

BOOT COMP.

Price €17.71
#8 45510-MJE-D01

FRONT MASTER CYLINDER SECONDARY ASSY. (NISSIN)

Price €183.08
#9 45512-MA6-006

PROTECTOR

Price €7.12
#10 45513-MM5-016 i

CAP OF MASTER CYLINDER (NISSIN)

Price €55.90
#11 45517-166-006 i

SUPPORT OF MASTER CYLINDER

Price €28.03
#12 45518-MM5-006 i

PLATE OF DIAPHRAGME

Price €19.50
#13 45520-MM5-006 i

DIAPHRAGME

Price €29.24
#14 45530-471-831 i

SET OF MASTER CYLINDER

Price €81.41
#15 53170-MKK-D01

LEVER ASSY. HANDLEBAR R.

Price €67.58
#16 90013-GHB-600

FLANGE BOLT, 6X10

Price €5.96
#17 90013-GHB-610

FLANGE BOLT, 6X12

Price €5.96
#18 90013-GHB-660

FLANGE BOLT, 6X22

Price €5.96
#19 90113-MKN-D50

FLANGE BOLT, 6X23.5

Price €2.98
#20 90114-MA5-671 i

BOLT OF PIVOT OF LEVER HANDLE

Price €13.19
#21 90145-MS9-612 i

BOLT OIL, 10X22 (SAGA)

Price €16.85
#22 90202-KCW-870

NUT OF CAP, 6MM

Price €1.93
#23 90545-300-000 i

WASHER OF BOLT OIL

Price €5.30
#24 90651-MA5-671 i

CIRCLIP

Price €7.63
#25 93600-040121G i

SCREW A HEAD PLATE, 4X12

Price €0.77
#26 93893-0401217 i

SCREW A HEAD A WASHER, 4X12

Price €1.08
#27 95701-0601007 i

FLANGE BOLT, 6X10

Price €1.00
#3 45125-MLR-D81

HOSE COMP, BRAKE FRONT A

Price €68.51
