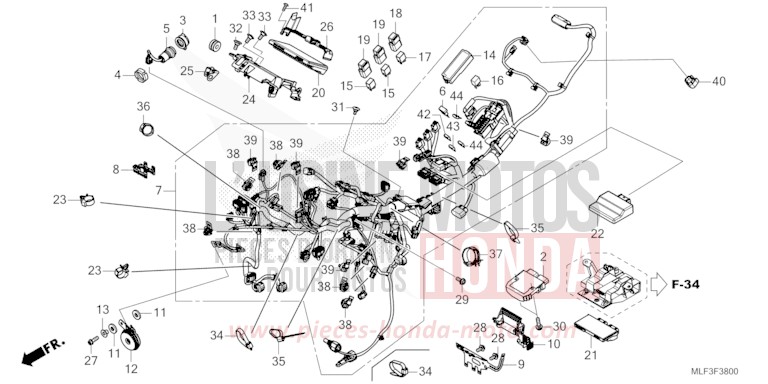

WIRE HARNESS for NT1100 CANDY CHROMOSPHERE RED (R381) from 2024

WIRE HARNESS for NT1100 CANDY CHROMOSPHERE RED (R381) from 2024
Reference
Product name
#1 17245-107-010 i

RUBBER, AIR CLEANER CASE MOUNTING

Price €10.15
#2 31600-MKN-D51

RECTIFIER ASSY, REGULATE

Price €245.41
#3 31651-MKS-E21

CAP

Price €35.23
#4 31652-MGH-H21

NUT, RING

Price €10.28
#5 31653-MKS-E21

BODY COMP, ACCESSORY

Price €109.88
#6 31730-MAS-601 i

DIODE ASSY, THREE WAY (SUMITOMO)

Price €22.76
#7 32100-MLF-E00

HARNESS, WIRE

Price €1,076.36
#8 32121-MKS-E01

HOLDER, COUPLER R HANDLE

Price €14.36
#9 32155-MKK-D00

STAY, HARNESS CLIP

Price €39.72
#10 32159-MJP-G50

COVER, COUPLER

Price €23.12
#11 33714-KL3-620

RUBBER, TAILLIGHT BRACKET

Price €7.60
#12 38110-KCR-J01

HORN COMP (HIGH)

Price €69.96
#13 38117-KFE-701 i

COLLAR, HORN SETTING

Price €3.28
#14 38255-MKS-E00

COVER COMP, UPPER

Price €30.86
#15 38501-MCS-G01 i

RELAY COMP, POWER (MICRO ISO 4P)

Price €21.71
#16 38501-MKP-DN1 i

RELAY COMP, POWER (MICRO ISO 4P)

Price €7.66
#19 38506-MCS-G00

SUSPENSION, POWER RELAY

Price €16.68
#22 38950-MLF-E01

CONTROL UNIT, BODY

Price €750.44
#24 80121-MLF-E00

TRAY, ECU

Price €44.03
#25 80124-MKS-E00

STAY A, R BATTERY BOX

Price €26.84
#26 80124-MLF-E00

BAND, ECU TRAY

Price €19.86
#27 90021-GHB-650

BOLT, FLANGE, 6X18

Price €5.71
#28 90025-GHB-620

BOLT, FLANGE, 6X12

Price €5.46
#29 90030-GHB-630

BOLT, FLANGE, 6X14

Price €5.46
#30 90030-GHB-670

BOLT, FLANGE, 6X22

Price €5.83
#31 90102-MKA-D80

SCREW, SPECIAL, 5X14

Price €8.86
#32 90114-MAC-780

BOLT, FR DISK COVER

Price €5.46
#33 90118-MJK-N20

SCREW, SPECIAL, 6X14

Price €8.32
#34 90651-KV6-003 i

BAND, WIRE, 165MM (BLACK)

Price €9.78
#35 90652-KT1-771 i

BAND, WIRE (BLACK)

Price €9.29
#36 90683-KJ2-003 i

CLIP, WIRE HARNESS

Price €9.12
#37 90690-GHB-681

CLIP, CABLE, 30MM

Price €2.08
#38 91535-TA0-003

CLIP, COUPLER (DARK BROWN)

Price €11.84
#39 91565-SEL-003

CLIP, COUPLER (BLACK)

Price €6.83
#40 91771-MKK-H11

CAP, DUMMY (6P) (RED)

Price €24.54
#41 93903-24280

SCREW, TAPPING, 4X10

Price €0.64
#42 98200-41000

FUSE, MINI (10A)

Price €1.25
#43 98200-41500

FUSE, MINI (15A)

Price €1.25
#44 98200-42000

FUSE, MINI (20A)

Price €1.25
#20 38770-MLF-E02

PGM-FI UNIT

Price €2,459.04
