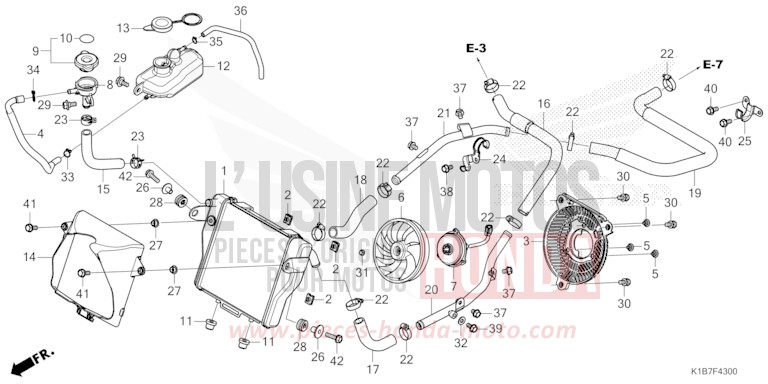

RADIATOR for NSS350A MAT PEARL PACIFIC BLUE (PB397) from 2021

RADIATOR for NSS350A MAT PEARL PACIFIC BLUE (PB397) from 2021
Reference
Product name
#1 19010-K1B-T01

RADIATOR COMP (TRAD)

Price €484.64
#2 19014-KEA-003

NUT, SETTING (6MM)

Price €6.47
#3 19015-K1B-T01

SHROUD COMP

Price €125.75
#4 19016-K1B-T00

TUBE, RESERVE TANK

Price €16.28
#5 19016-KEA-003

SCREW, PAN, 4X85

Price €5.90
#6 19020-MGS-D31

FAN COMP, COOLING (TRAD)

Price €99.83
#7 19030-K1B-T01

MOTOR ASSY, FAN

Price €106.84
#8 19035-K04-931

NECK, FILLER

Price €87.26
#9 19037-MCA-G61

CAP COMP, RADIATOR (TRAD)

Price €62.52
#10 19046-MCA-G61

LABEL, RADIATOR CAP (TRAD)

Price €12.17
#11 19051-MB2-000

RUBBER, RADIATOR MOUNTING

Price €6.71
#12 19101-K1B-T00

TANK, RESERVE

Price €40.33
#13 19104-MB0-700

CAP, RESERVE TANK

Price €13.64
#14 19122-K1B-T00

SHROUD, RADIATOR

Price €73.76
#15 19126-K1B-T00

HOSE, FILLER

Price €22.98
#16 19501-K1B-T00

HOSE A, WATER

Price €27.25
#17 19502-K1B-T00

HOSE B, WATER

Price €14.76
#18 19503-K1B-T00

HOSE C, WATER

Price €14.56
#19 19504-K1B-T00

HOSE D, WATER

Price €105.05
#20 19505-K1B-T00

PIPE A, WATER

Price €49.62
#21 19506-K1B-T00

PIPE B, WATER

Price €37.70
#22 19507-KA3-830

CLAMP B, WATER HOSE

Price €13.45
#23 19509-KPH-900

CLAMP, TUBE (D19)

Price €3.49
#24 19530-K1B-T00

CLAMPER A, WATER HOSE

Price €9.17
#25 19532-K1B-T00

CLAMPER B, WATER HOSE

Price €4.22
#26 61104-428-730

COLLAR, FR FENDER (BLACK)

Price €3.96
#27 61112-K97-T00

COLLAR, FR FENDER

Price €4.52
#28 61304-415-000

RUBBER, HEADLIGHT CASE MOUNTING

Price €7.38
#29 90111-162-000

BOLT, FLANGE, 6MM

Price €5.76
#30 90120-KCR-003

BOLT-WASHER, 6X16

Price €8.38
#31 90315-MFL-003

NUT, FLANGE, 3MM

Price €5.09
#32 90441-706-000

WASHER, SEALING, 6MM

Price €1.00
#33 95002-02100

CLIP, TUBE (B10)

Price €1.06
#34 95002-02120

CLIP, TUBE (B12)

Price €1.06
#35 95002-50000

CLIP, TUBE (C9)

Price €0.77
#36 95005-5022030

TUBE, 5X220 (95005-50001-30M)

Price €16.39
#37 95701-0600808

BOLT, FLANGE, 6X8

Price €0.97
#38 95701-0601200

BOLT, FLANGE, 6X12

Price €1.13
#39 95701-0601208

BOLT, FLANGE, 6X12

Price €1.06
#40 95701-0601400

BOLT, FLANGE, 6X14

Price €1.13
#41 95701-0601608

BOLT, FLANGE, 6X16

Price €1.06
#42 95701-0602208

BOLT, FLANGE, 6X22

Price €1.22
