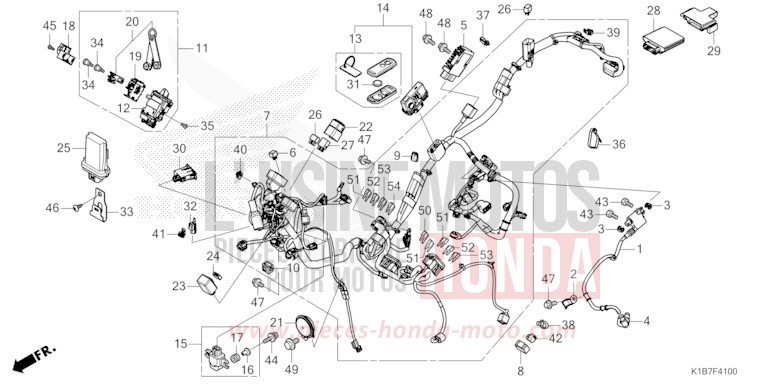

WIRE HARNESS for NSS350A MAT PEARL PACIFIC BLUE (PB397) from 2021

WIRE HARNESS for NSS350A MAT PEARL PACIFIC BLUE (PB397) from 2021
Reference
Product name
#1 30510-K1B-T01

COIL COMP, IGNITION (TOYO DENSO)

Price €91.64
#2 30511-K04-930

CLAMPER, HIGH TENSION CORD

Price €3.12
#3 30520-GFM-900

SPACER, IGNITION COIL

Price €8.96
#4 30700-KTW-901

CAP ASSY, NOISE SUPPRESSOR

Price €71.29
#5 31600-K1B-T01

RECTIFIER ASSY, REGULATOR

Price €1,205.77
#6 31700-MM8-610

RECTIFIER COMP, SILICON

Price €47.05
#7 32100-K1B-D10

HARNESS, WIRE

Price €2,065.85
#8 32111-K1B-T00

SUSPENSION, CONNECTOR

Price €13.19
#9 32605-KCW-J91

CAP, DUMMY (2P) (BLUE)

Price €19.21
#10 32606-MEL-D01

CAP, DUMMY (6P) (NATURAL)

Price €15.84
#11 35100-K1B-F01

SWITCH ASSY, HANDLE LOCK

Price €532.69
#12 35101-K1B-F01

SWITCH COMP, HANDLE LOCK

Price €409.15
#13 35121-K1B-D02

FOB ASSY

Price €175.24
#14 35141-K1B-D02

CONTROL UNIT SET, SMART

Price €496.38
#15 35160-KPP-T01

SENSOR ASSY, BANK ANGLE

Price €71.40
#16 35162-MGC-003

COLLAR

Price €11.26
#17 35163-MGC-003

GROMMET

Price €9.18
#18 35191-K53-D01

COVER, CABLE

Price €10.97
#19 35193-K1B-T01

SWITCH ASSY, SEAT OPENER

Price €63.01
#20 35194-K0R-V01

KEY SET, EMERGENCY

Price €31.44
#21 38110-K27-M01

HORN COMP (HIGH)

Price €123.91
#22 38200-K0B-T00

SUSPENSION, RELAY CASE (2P)

Price €9.19
#23 38301-MKJ-D01

RELAY COMP, WINKER (LED)

Price €75.32
#24 38306-KK4-000

SUSPENSION, WINKER RELAY (MITSUBA)

Price €8.46
#26 38501-KVZ-631

RELAY ASSY, POWER (MICRO ISO 4P) (MITSUBA)

Price €22.70
#27 38502-GGZ-J01

RELAY COMP, POWER (MICRO ISO 5P) (MITSUBA)

Price €42.10
#28 38770-K1B-D02

PGM-FI UNIT

Price €378.04
#29 38771-K1B-T00

CUSHION, PGM-FI UNIT

Price €27.83
#30 38940-K1B-T01

CHARGER UNIT, USB (TYPE-C)

Price €101.72
#31 72148-S04-000

BATTERY (CR2032) (MAXELL)

Price €6.59
#32 80525-TBA-A01

SENSOR ASSY, AMBIENT

Price €85.91
#34 90104-K53-D01

SCREW, OPENER SET

Price €1.70
#35 90164-KZL-A00

SCREW, U-LOCK FLAT, 6X12

Price €3.49
#36 90620-SB2-003

BAND, WIRE HARNESS

Price €17.53
#37 90652-HC4-003

CLAMP, HARNESS

Price €9.00
#38 90672-SB2-003

STRAP, CABLE, 105MM (BLACK)

Price €9.86
#39 91535-TA0-003

CLIP, COUPLER (DARK BROWN)

Price €8.64
#40 91536-STK-003

CLIP, RELAY HOLDER (NATURAL)

Price €8.21
#41 91565-SEL-003

CLIP, COUPLER (BLACK)

Price €4.73
#42 91771-MKK-H11

CAP, DUMMY (6P) (RED)

Price €13.45
#43 92101-060204J

BOLT, HEX, 6X20

Price €1.78
#44 93403-0602500

BOLT-WASHER, 6X25

Price €1.62
#45 93901-24320

SCREW, TAPPING, 4X12

Price €0.77
#47 95701-0601200

BOLT, FLANGE, 6X12

Price €1.13
#48 95701-0602200

BOLT, FLANGE, 6X22

Price €1.39
#49 95701-0801400

BOLT, FLANGE, 8X14

Price €1.22
#50 98200-40500

FUSE, MINI (5A)

Price €0.86
#51 98200-40750

FUSE, MINI (75A)

Price €1.22
#52 98200-41000

FUSE, MINI (10A)

Price €1.22
#53 98200-41500

FUSE, MINI (15A)

Price €1.22
#54 98200-43000

FUSE, MINI (30A)

Price €1.81
