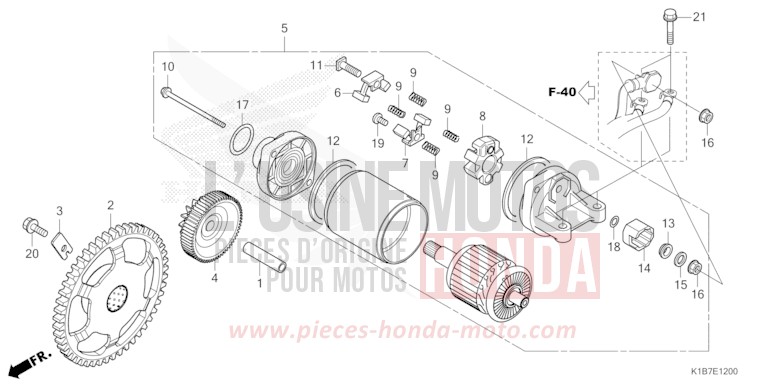

STARTER MOTOR for NSS350A MAT PEARL PACIFIC BLUE (PB397) from 2021

STARTER MOTOR for NSS350A MAT PEARL PACIFIC BLUE (PB397) from 2021
Reference
Product name
#1 28102-ME9-000

PIN, 10X44

Price €12.94
#2 28110-K1B-T00

GEAR COMP, STARTER DRIVEN (49T)

Price €114.32
#3 28115-KTW-900

GUIDE, STARTING DRIVEN GEAR

Price €9.22
#4 28131-K1B-T00

GEAR, STARTER REDUCTION (62T/12T)

Price €43.67
#5 31200-K1B-T01

MOTOR ASSY, STARTER

Price €714.65
#6 31201-MEW-921

BRUSH SET A, CARBON

Price €18.38
#7 31202-MEW-921

BRUSH SET B, CARBON

Price €18.44
#8 31203-MEW-921

HOLDER, BRUSH

Price €10.15
#9 31204-MEW-921

SPRING, CARBON BRUSH

Price €4.56
#10 31205-HP5-601

BOLT, SETTING

Price €7.67
#11 31206-MEW-921

BOLT, TERMINAL

Price €8.65
#12 31207-HP5-601

RING

Price €4.56
#13 31208-MEW-921

INSULATOR

Price €3.98
#14 31209-MEW-921

STOPPER, TERMINAL

Price €9.94
#15 31210-MEW-921

WASHER

Price €3.40
#16 90071-MB0-000

NUT-WASHER, 6MM

Price €5.28
#17 91309-425-003

O-RING, 244X31 (ARAI)

Price €8.52
#18 91320-MB0-000

O-RING, 4X2

Price €5.23
#19 93892-0501208

SCREW-WASHER, 5X12

Price €1.32
#20 95701-0601400

BOLT, FLANGE, 6X14

Price €1.13
#21 95801-0602500

BOLT, FLANGE, 6X25

Price €1.22
