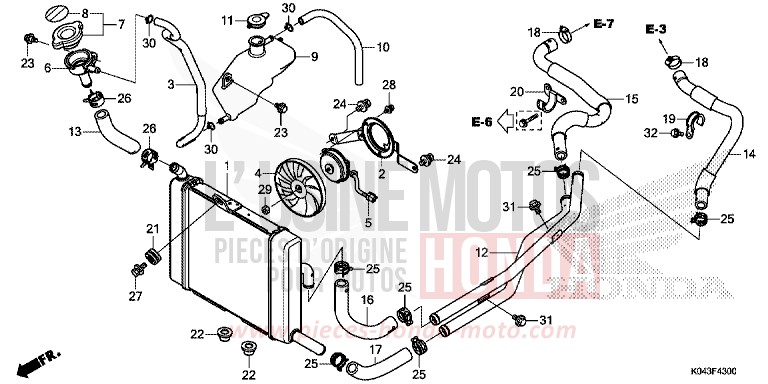

RADIATOR for NSS300A PEARL HIMALAYAS WHITE (NHA87) from 2013

RADIATOR for NSS300A PEARL HIMALAYAS WHITE (NHA87) from 2013
Reference
Product name
#1 19010-K04-931

RADIATOR COMP (TRAD)

Price €346.30
#2 19015-K04-931

SHROUD COMP

Price €113.93
#3 19017-K04-930

TUBE, FILLER

Price €14.89
#4 19020-KVZ-631

FAN COMP. REFROIDISSEMENT

Price €94.07
#5 19030-K04-931

MOTOR ASSY, FAN (TRAD)

Price €410.80
#6 19035-K04-931

GOULOT OF REMPLISSAGE

Price €28.19
#7 19037-MCA-G61

CAP COMP. RADIATOR (T.WHEEL)

Price €77.52
#8 19046-MCA-G61

LABEL OF CAP OF RADIATOR (T.WHEEL)

Price €14.70
#9 19101-K04-930

TANK, RESERVE

Price €19.91
#10 19102-K04-930

TUBE, RESERVE TANK

Price €10.55
#11 19109-KBP-900

PLUG OF TANK OF RESERVE

Price €3.97
#12 19120-K04-930

PIPE COMP, WATER

Price €34.40
#13 19126-K04-930

HOSE, FILLER

Price €12.19
#14 19501-K04-930

HOSE A, WATER

Price €57.01
#15 19502-K04-930

HOSE B, WATER

Price €38.96
#16 19503-K04-930

HOSE C, WATER

Price €15.44
#17 19504-K04-930

HOSE D, WATER

Price €8.89
#18 19507-KA3-830

CLIP B OF FLEXIBLE WATER

Price €19.08
#19 19531-KTW-900

CLAMPER A, WATER HOSE

Price €5.05
#20 19532-KTW-900

CLAMPER B, WATER HOSE

Price €12.22
#21 61304-415-000

RUBBER OF MOUNTING OF HOUSING OF HEADLIGHT

Price €9.37
#22 64415-KGH-900

BOOTS, BODY COVER

Price €4.62
#23 90116-KVB-900

BOLT, FLANGE, 6MM

Price €2.98
#24 90120-GHB-601

WASHER A BOLT, 6X12

Price €7.55
#25 90701-KWN-901

CLIP, WATER HOSE, 24MM

Price €3.97
#26 90701-MF5-003

WATER HOSE CLIP, 21MM

Price €12.35
#27 93404-0601200 i

BOLT WITH WASHER, 6X12

Price €1.08
#28 93891-0400607

VIS A TETE A WASHER, 4X6

Price €0.79
#29 90315-MFL-003

FLANGE NUT, 3MM

Price €6.38
#30 95002-02120

CLAMP, TUBE (B12)

Price €1.08
#31 95701-0601000 i

FLANGE BOLT, 6X10

Price €1.15
#32 95701-0601200 i

FLANGE BOLT, 6X12

Price €1.15
