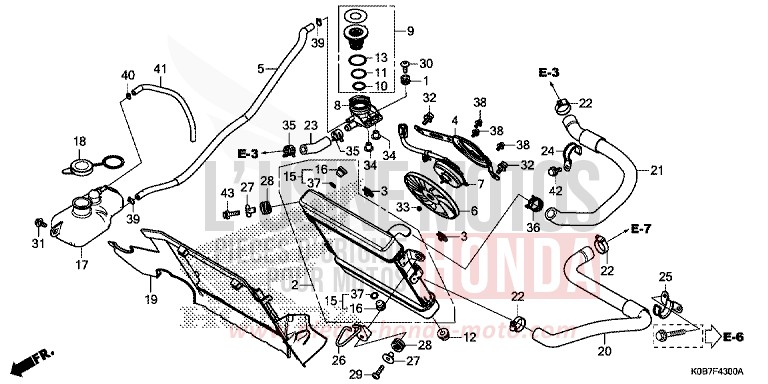

RADIATOR for NSS300A MAT CYNOS GRAY METALLIC (NH312) from 2019

RADIATOR for NSS300A MAT CYNOS GRAY METALLIC (NH312) from 2019
Reference
Product name
#1 11356-KWN-700

RUBBER, L SIDE OUTER COVER

Price €4.94
#2 19010-K0B-T01

RADIATOR COMP

Price €473.15
#3 19014-KEA-003

NUT, SETTING (6MM)

Price €6.47
#4 19015-K0B-T01

SHROUD COMP

Price €64.18
#5 19017-K0B-T00

TUBE, RESERVE TANK

Price €21.53
#6 19020-KVZ-631

FAN COMP, COOLING

Price €95.21
#7 19030-K0B-T01

MOTOR ASSY, FAN

Price €103.31
#8 19035-K0B-T01

NECK, FILLER

Price €51.50
Contact us
#9 19037-K40-F01

CAP COMP, RADIATOR (TRAD)

Price €55.98
#10 19049-K27-V51

O-RING A

Price €4.90
#11 19051-K27-V51

O-RING B

Price €5.00
#12 19051-MB2-000

RUBBER, RADIATOR MOUNTING

Price €6.71
#13 19052-K27-V51

O-RING C

Price €38.54
#15 19070-MEC-003

COCK ASSY, DRAIN

Price €10.09
#16 19071-MEC-003

COCK, DRAIN

Price €7.04
#17 19101-K0B-T00

TANK, RESERVE

Price €40.90
#18 19104-MB0-700

CAP, RESERVE TANK

Price €13.64
#19 19122-K0B-K00

SHROUD, RADIATOR

Price €25.18
#20 19501-K0B-T00

HOSE A, WATER

Price €42.66
#21 19502-K0B-T00

HOSE B, WATER

Price €36.29
#22 19507-KA3-830

CLAMP B, WATER HOSE

Price €13.45
#23 19526-K0B-T00

HOSE, WATER FILLER

Price €6.24
Contact us
#24 19531-KTW-900

CLAMPER A, WATER HOSE

Price €4.60
#25 19532-KTW-900

CLAMPER B, WATER HOSE

Price €9.88
#26 31330-K0B-T00

STAY, HARNESS

Price €19.46
#27 61104-428-730

COLLAR, FR FENDER (BLACK)

Price €3.96
#28 61304-415-000

RUBBER, HEADLIGHT CASE MOUNTING

Price €7.38
#29 90003-KWN-900

BOLT, SPECIAL, 6X235

Price €5.06
#30 90085-MZ1-000

BOLT, SPECIAL, 6X17

Price €5.29
#31 90111-162-000

BOLT, FLANGE, 6MM

Price €5.76
#32 90120-GHB-601

BOLT-WASHER, 6X12

Price €5.69
#33 90315-MFL-003

NUT, FLANGE, 3MM

Price €5.09
#34 90401-K0B-T00

COLLAR, FILLER NECK

Price €11.70
Contact us
#35 90678-MR1-690

CLIP, HOSE

Price €4.88
#36 90701-KWN-901

CLAMP, WATER HOSE, 24MM

Price €6.78
#37 91353-MEC-003

O-RING, 98X19

Price €6.38
#38 93891-0400607

SCREW-WASHER, 4X6

Price €0.78
#39 95002-02100

CLIP, TUBE (B10)

Price €1.06
#40 95002-50000

CLIP, TUBE (C9)

Price €0.77
#41 95005-5020030

TUBE, 5X200 (95005-50001-30M)

Price €4.22
#42 95701-0601200

BOLT, FLANGE, 6X12

Price €1.13
#43 95701-0602208

BOLT, FLANGE, 6X22

Price €1.22
