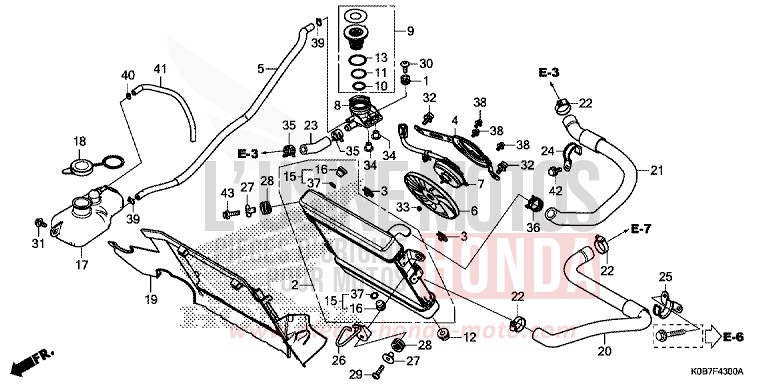

RADIATOR for NSS300A MAT CYNOS GRAY METALLIC (NH312) from 2019

RADIATOR for NSS300A MAT CYNOS GRAY METALLIC (NH312) from 2019
Reference
Product name
#1 11356-KWN-700

RUBBER, L SIDE OUTER COVER

Price €4.14
#2 19010-K0B-T01

RADIATOR COMP

Price €359.05
#3 19014-KEA-003

NUT, POSE (6MM)

Price €7.20
#4 19015-K0B-T01

SHROUD COMP

Price €48.47
#5 19017-K0B-T00

TUBE, RESERVE TANK

Price €13.75
#6 19020-KVZ-631

FAN COMP. REFROIDISSEMENT

Price €94.07
#7 19030-K0B-T01

MOTOR ASSY, FAN

Price €116.39
#8 19035-K0B-T01

NECK, FILLER

Price €43.24
Contact us
#9 19037-K40-F01

CAP COMP, RADIATOR (TRAD)

Price €38.09
#10 19049-K27-V51

O-RING A

Price €4.73
#11 19051-K27-V51

O-RING B

Price €4.73
#12 19051-MB2-000

RUBBER OF MOUNTING OF RADIATOR

Price €9.37
#13 19052-K27-V51

O-RING C

Price €90.40
#15 19070-MEC-003

COCK ASSY, DRAIN

Price €14.47
#16 19071-MEC-003

ROBINET OF DRAIN

Price €8.89
#17 19101-K0B-T00

TANK, RESERVE

Price €27.53
#18 19104-MB0-700 i

CAP, RESERVE TANK

Price €19.08
#19 19122-K0B-K00

SHROUD, RADIATOR

Price €41.74
#20 19501-K0B-T00

HOSE A, WATER

Price €32.22
#21 19502-K0B-T00

HOSE B, WATER

Price €27.40
#22 19507-KA3-830

CLIP B OF FLEXIBLE WATER

Price €19.08
#23 19526-K0B-T00

HOSE, WATER FILLER

Price €6.24
Contact us
#24 19531-KTW-900

CLAMPER A, WATER HOSE

Price €5.05
#25 19532-KTW-900

CLAMPER B, WATER HOSE

Price €12.22
#26 31330-K0B-T00

STAY, HARNESS

Price €19.86
#27 61104-428-730

BAND OF GUARD-BOUE FRONT (BLACK)

Price €12.07
#28 61304-415-000

RUBBER OF MOUNTING OF HOUSING OF HEADLIGHT

Price €9.37
#29 90003-KWN-900

BOLT SPECIAL, 6X23.5

Price €2.98
#30 90085-MZ1-000

SPEZIALBOLT, 6X17

Price €5.46
#31 90111-162-000 i

FLANGE BOLT, 6MM

Price €7.55
#32 90120-GHB-601

WASHER A BOLT, 6X12

Price €7.55
#33 90315-MFL-003

FLANGE NUT, 3MM

Price €6.38
#34 90401-K0B-T00

COLLAR, FILLER NECK

Price €11.70
Contact us
#35 90678-MR1-690

CLAMP, TUBE

Price €6.94
#36 90701-KWN-901

CLIP, WATER HOSE, 24MM

Price €3.97
#37 91353-MEC-003

O-RING, 9.8X1.9

Price €8.14
#38 93891-0400607

VIS A TETE A WASHER, 4X6

Price €0.79
#39 95002-02100 i

PIPE CLIP (B10)

Price €1.08
#40 95002-50000 i

PIPE CLIP (C9)

Price €0.78
#41 95005-5020030 i

TUBE, 5X200 (95005-50001-30M)

Price €4.31
#42 95701-0601200 i

FLANGE BOLT, 6X12

Price €1.15
#43 95701-0602208 i

FLANGE BOLT, 6X22

Price €1.25
