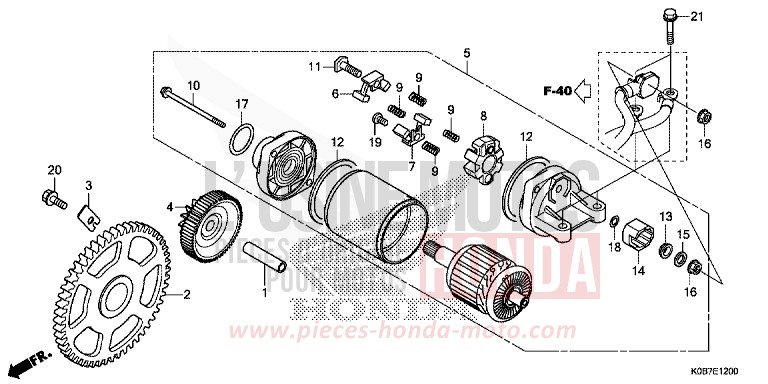

STARTER MOTOR for NSS300A CRESCENT BLUE METALLIC (PB412) from 2019

STARTER MOTOR for NSS300A CRESCENT BLUE METALLIC (PB412) from 2019
Reference
Product name
#1 28102-ME9-000

PIN, 10X44

Price €17.39
#2 28110-K04-930

GEAR COMP, STARTER DRIVEN (52T)

Price €161.76
#3 28115-KTW-900

GUIDE, STARTER MOTORDRIVES- GEAR

Price €6.38
#4 28131-K04-930

GEAR, STARTER REDUCTION (62T/13T)

Price €46.56
#5 31200-KTW-B01

MOTOR ASSY, STARTER (MITSUBA)

Price €347.51
#6 31201-MEW-921

CARBON BRUSH ASSY. A

Price €18.88
#7 31202-MEW-921

CARBON BRUSH ASSY. B

Price €18.88
#8 31203-MEW-921

BRUSH HOLDER

Price €13.49
#9 31204-MEW-921

SPRING, BRUSH-CHARBON

Price €6.92
#10 31205-HP5-601

BOLT OF FIXING

Price €7.91
#11 31206-MEW-921

BOLT OF BORNE

Price €6.38
#12 31207-HP5-601

RING

Price €6.80
#13 31208-MEW-921

INSULATOR

Price €5.58
#14 31209-MEW-921

STOPPER, BORNE

Price €12.14
#15 31210-MEW-921

WASHER

Price €5.44
#16 90071-MB0-000 i

NUT-WASHER, 6MM

Price €6.12
#17 91309-425-003 i

O-RING, 24.4X3.1 (ARAI)

Price €12.65
#18 91320-MB0-000

O-RING, 4X2

Price €5.34
#19 93892-0501208 i

SCREW A HEAD A WASHER, 5X12

Price €1.34
#20 95701-0601400 i

FLANGE BOLT, 6X14

Price €1.15
#21 95701-0602500 i

FLANGE BOLT, 6X25

Price €1.34
