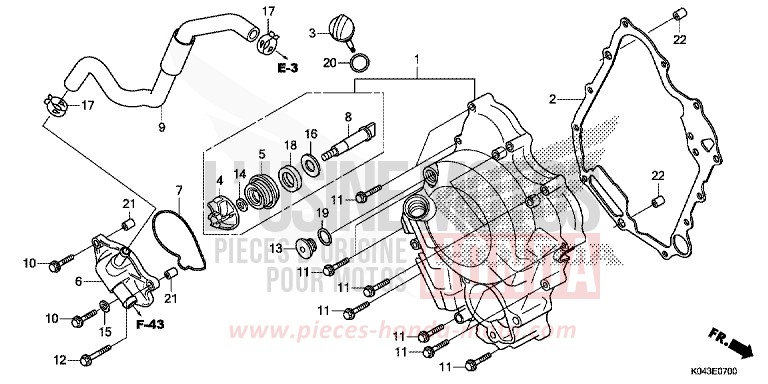

RIGHT CRANKCASE COVER/WATER PUMP for NSS300A ASTEROID BLACK METALLIC (NHA35) from 2013

RIGHT CRANKCASE COVER/WATER PUMP for NSS300A ASTEROID BLACK METALLIC (NHA35) from 2013
Reference
Product name
#1 11300-K04-931

COVER ASSY, R

Price €397.24
#2 11394-KTW-901

GASKET, R CRANKCASE COVER

Price €16.88
#3 15651-K04-930

GAUGE, OIL LEVEL

Price €19.03
#4 19215-KTW-900

IMPELLER, WATER PUMP

Price €64.14
#5 19217-MAL-300

SEAL, MECHANICAL

Price €85.54
#6 19220-K04-930

COVER COMP, WATER PUMP

Price €178.18
#7 19226-KTW-900

GASKET, WATER PUMP COVER

Price €5.63
#8 19241-K04-930

SHAFT, WATER PUMP

Price €79.01
#9 19527-KTW-900

HOSE, WATER BYPASS

Price €51.91
#10 90010-K04-930

BOLT, FLANGE, 6X32 (NSHF)

Price €4.10
#11 90011-K04-930

BOLT, FLANGE, 6X40 (NSHF)

Price €3.74
#12 90013-K04-930

BOLT, FLANGE, 6X75 (NSHF)

Price €3.74
#13 90084-KWA-930

CAP, 14MM

Price €21.59
#14 90423-KJ9-000

WASHER, 72X13X12

Price €3.44
#15 90441-706-000

WASHER, SEALING, 6MM

Price €1.00
#16 90599-767-C10

WASHER, THRUST, 12X23X2

Price €1.91
#17 90678-MR1-690

CLIP, HOSE

Price €4.88
#18 91202-KTW-901

OIL SEAL, 12X26X5

Price €7.36
#19 91303-377-000

O-RING, 138X25

Price €7.07
#20 91307-035-000

O-RING, 18X3

Price €2.27
#21 94301-08140

DOWEL PIN, 8X14

Price €2.02
#22 94301-10160

DOWEL PIN, 10X16

Price €2.33
