CYLINDER HEAD COVER 🏍️ NSS125AD
CAMSHAFT/VALVE 🏍️ NSS125AD

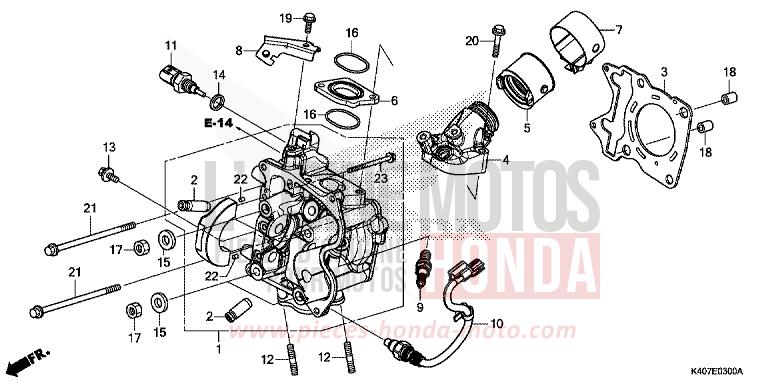

CYLINDER HEAD for NSS125AD NOIR (NH1) from 2020

CYLINDER HEAD for NSS125AD NOIR (NH1) from 2020
Reference
Product name
#1 12010-K40-F30

HEAD ASSY, CYLINDER

Price €439.33
#2 12205-KYJ-305

GUIDE, EX VALVE (OS)

Price €31.15
#3 12251-K40-F01

GASKET, CYLINDER HEAD

Price €25.87
#4 17111-K40-F00

PIPE A, INLET

Price €66.17
#5 17112-K40-F00

INSULATOR, THROTTLE BODY

Price €21.44
#6 17119-K40-F00

INSULATOR, IN PIPE

Price €17.59
#7 17255-K40-F00

BAND, INSULATOR

Price €19.49
#8 17533-K40-F00

STAY COMP, HOSE CLAMPER

Price €6.90
#9 31917-K40-F01

PLUG, SPARK (SILMAR8C9) (NGK)

Price €51.54
#10 36532-K40-F31

SENSOR, OXYGEN (NGK)

Price €157.64
#11 37870-KRJ-901

SENSOR ASSY, WATER TEMPERATURE

Price €75.68
#12 90004-KGF-910

BOLT, STUD, 7X17

Price €5.44
#13 90022-K40-F00

BOLT-WASHER, 6X12

Price €3.20
#14 90454-MC7-000

WASHER, SPECIAL, 12MM

Price €5.53
#15 90483-KWN-900

WASHER, 8MM

Price €3.68
#16 91302-K40-F00

O-RING, IN PIPE

Price €14.00
#17 94030-08280

NUT, HEX, 8MM

Price €0.78
#18 94301-10160

DOWEL PIN, 10X16

Price €2.33
#19 95701-0601400

BOLT, FLANGE, 6X14

Price €1.13
#20 95701-0604000

BOLT, FLANGE, 6X40

Price €1.22
#21 95701-0609500

BOLT, FLANGE, 6X95

Price €3.00
#22 94303-03050

DOWEL PIN, 3X5

Price €1.88
#23 96001-0608000

BOLT, FLANGE, 6X80

Price €1.78
