TRANSMISSION 🏍️ NSS125AD
LEFT CRANKCASE 🏍️ NSS125AD

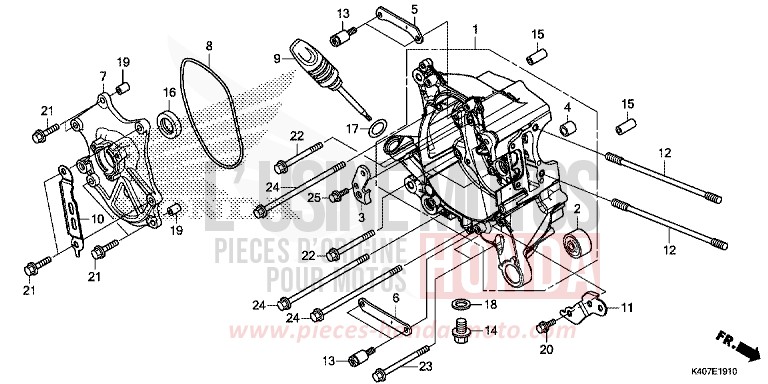

RIGHT CRANKCASE for NSS125AD NOIR (NH1) from 2015

RIGHT CRANKCASE for NSS125AD NOIR (NH1) from 2015
Reference
Product name
#14 90131-883-000

BOLT, DRAIN PLUG, 12X15

Price €4.74
#17 91307-035-000

O-RING, 18X3

Price €2.27
#18 94109-12000

WASHER, DRAIN PLUG, 12MM

Price €1.74
#19 94301-08100

DOWEL PIN, 8X10

Price €1.78
#20 95701-0601400

BOLT, FLANGE, 6X14

Price €1.13
#21 95701-0602500

BOLT, FLANGE, 6X25

Price €1.32
#22 95701-0606500

BOLT, FLANGE, 6X65

Price €1.70
#25 96001-0601600

BOLT, FLANGE, 6X16

Price €1.22
#1 11100-K40-F00

CRANKCASE COMP, R

Price €696.12
#2 11103-KVB-901

BUSH, ENGINE HANGER RUBBER (HOKUSHIN)

Price €14.58
#2 11103-KVB-930

BUSH, ENGINE HANGER RUBBER

Price €14.58
#3 11117-KWN-901

PLATE, BEARING PUSH

Price €6.97
#4 11205-GBC-300

BUSH, MAIN STAND

Price €7.40
#5 11338-K40-F00

PLATE, RIGIDITY UPPER

Price €10.30
#6 11339-K40-F00

PLATE, RIGIDITY LOWER

Price €10.18
#7 11361-KWN-901

BASE, STATOR

Price €77.56
#8 11363-KWN-900

GASKET, STATOR BASE

Price €7.60
#9 15651-K29-900

GAUGE, OIL LEVEL

Price €17.98
#10 32961-K29-910

CLAMPER, AC GENERATOR CORD

Price €2.02
#11 32962-KZR-600

STAY, ENGINE HARNESS

Price €3.34
#12 90031-KWN-900

BOLT A, STUD, 8X2005

Price €14.12
#13 90036-K40-F00

BOLT, RADIATOR DISTANCE

Price €7.55
#15 90702-KWN-900

DOWEL PIN, SPECIAL, 63X10X30

Price €3.49
#16 91201-K35-J01

OIL SEAL, 208X32X6 (ARAI)

Price €6.23
#23 95701-0608000

BOLT, FLANGE, 6X80

Price €1.88
#24 95701-0613000

BOLT, FLANGE, 6X130

Price €2.94
# 31210-KZY-701

FLYWHEEL COMP (MITSUBA)

Price €377.74
# 31220-K40-F01

STATOR COMP

Price €331.72
# 90001-KWR-000

BOLT, SOCKET, 6X18

Price €8.45
# 90439-KWZ-900

WASHER, 12X24X23

Price €5.21
# 94050-12000

NUT, FLANGE, 12MM

Price €1.70
# 96700-0602500

BOLT, SOCKET, 6X25

Price €1.48
