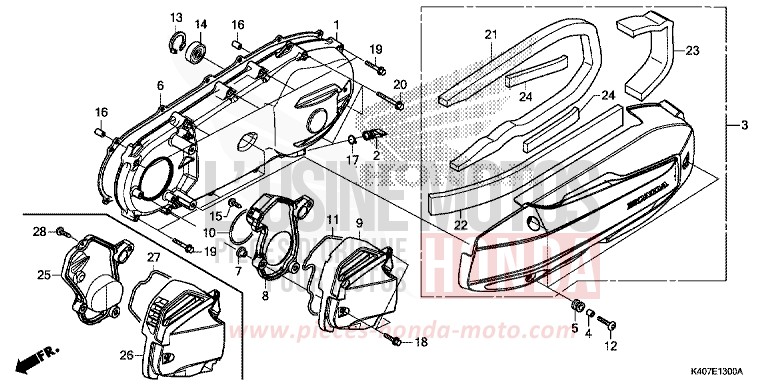

LEFT SIDE COVER for NSS125AD NOIR (NH1) from 2015

LEFT SIDE COVER for NSS125AD NOIR (NH1) from 2015
Reference
Product name
#15 93903-24380

SCREW, TAPPING, 4X12

Price €1.19
#16 94301-08140

DOWEL PIN, 8X14

Price €2.02
#17 95002-80000

CLIP, TUBE (C12)

Price €0.86
#18 96001-0601807

BOLT, FLANGE, 6X18

Price €1.22
#19 96001-0604000

BOLT, FLANGE, 6X40

Price €1.70
#20 96001-0605000

BOLT, FLANGE, 6X50

Price €1.70
#1 11340-K40-F00

COVER COMP, L SIDE

Price €357.98
#2 11343-KVG-900

TUBE, DRAIN

Price €5.06
#3 11350-K40-F00

COVER COMP, L SIDE OUTER

Price €99.37
#4 11355-KWN-700

COLLAR, L SIDE OUTER COVER

Price €7.27
#5 11356-KWN-700

RUBBER, L SIDE OUTER COVER

Price €4.94
#6 11395-K40-F00

GASKET, L COVER

Price €18.30
#7 19416-KEY-900

COLLAR

Price €5.48
#8 19641-K40-F00

DUCT, L COVER

Price €24.02
#9 19642-K40-F00

CAP, L COVER

Price €16.01
#10 19645-KWN-900

SEAL, BELT COVER DUCT

Price €3.55
#11 19649-K40-F00

SEAL, L COVER DUCT

Price €5.68
#12 90085-K04-930

BOLT, SPECIAL, 6X22

Price €3.74
#13 90652-KVB-900

CIRCLIP, INTERNAL, 32MM

Price €3.49
#14 91005-KVB-900

BEARING COMP (6002UU) (NTN)

Price €28.12
#21 11353-K40-F00

MAT, L OUTER COVER (A)

Price €27.68
#22 11354-K40-F00

MAT, L OUTER COVER (B)

Price €26.44
#23 11355-K40-F00

MAT, L OUTER COVER (C)

Price €24.64
#24 11356-K40-F00

MAT, L OUTER COVER (D)

Price €18.43
# 31210-KZY-701

FLYWHEEL COMP (MITSUBA)

Price €377.74
# 31220-K40-F01

STATOR COMP

Price €331.72
# 90001-KWR-000

BOLT, SOCKET, 6X18

Price €8.45
# 90439-KWZ-900

WASHER, 12X24X23

Price €5.21
# 94050-12000

NUT, FLANGE, 12MM

Price €1.70
# 96700-0602500

BOLT, SOCKET, 6X25

Price €1.48
