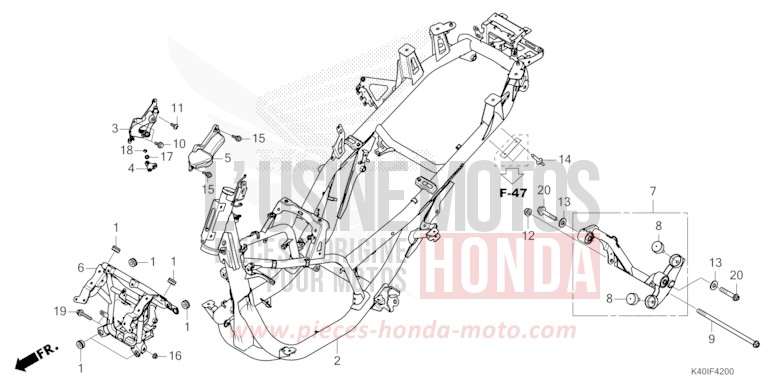

FRAME BODY for NSS125AD MAT CARNELIAN RED METALLIC (R384) from 2023

FRAME BODY for NSS125AD MAT CARNELIAN RED METALLIC (R384) from 2023
Reference
Product name
#1 19051-KA4-000

RUBBER, RADIATOR MOUNTING

Price €9.37
#3 50200-K0B-T01

LINK COMP, HANDLE STOPPER

Price €58.48
#4 50209-K0B-T00

ARM, LID LOCK

Price €13.00
#5 50210-K0B-T00

COVER, HANDLE STOPPER

Price €26.66
#7 50350-K40-A00

LINK ASSY, ENGINE HANGER

Price €271.50
#8 50352-K40-A00

RUBBER, STOPPER

Price €5.28
#9 90105-K40-A00

BOLT, FLANGE, 10X260

Price €32.36
#10 90112-GW3-000

BOLT, FLANGE, 6X14

Price €5.46
#11 90113-K40-F00

SCREW, PAN, 5X15

Price €7.91
#12 90304-KGH-901

NUT, U, 10MM (FUJI SEIMITSU)

Price €3.16
#13 90551-KTE-910

WASHER, SPECIAL, 10MM

Price €1.18
#14 90841-KM1-670

RIVET, PLATE

Price €6.80
#15 91509-GE2-760

SCREW, PAN, 5X115

Price €6.80
#16 94050-08080 i

NUT, FLANGE, 8MM

Price €1.50
#17 94101-06800 i

WASHER, PLAIN, 6MM

Price €0.78
#18 94540-05018

E-RING, 5MM

Price €2.70
#19 95801-0804508 i

BOLT, FLANGE, 8X45

Price €1.92
#20 95801-1005500 i

BOLT, FLANGE, 10X55

Price €1.81
#2 50100-K40-A03 i

BODY COMP, FRAME

Price €1,811.72
#6 50310-K40-D20

STAY COMP, FR COVER

Price €250.37
