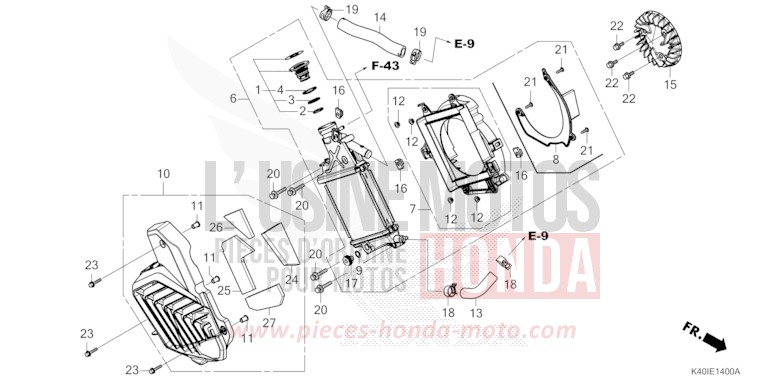

RADIATOR for NSS125AD MAT CARNELIAN RED METALLIC (R384) from 2023

RADIATOR for NSS125AD MAT CARNELIAN RED METALLIC (R384) from 2023
Reference
Product name
#1 19037-K40-F01

CAP COMP, RADIATOR (TRAD)

Price €55.98
#2 19049-K27-V51

O-RING A

Price €4.90
#3 19051-K27-V51

O-RING B

Price €5.00
#4 19052-K27-V51

O-RING C

Price €38.54
#9 19109-GET-003

SEAL, DRAIN

Price €5.82
#10 19150-K40-A00

COVER COMP, RADIATOR

Price €46.82
#11 19416-K01-900

COLLAR

Price €8.41
#12 19416-KEY-900

COLLAR

Price €5.48
#13 19501-K0R-V00

HOSE A, WATER

Price €16.36
#14 19502-K40-A00

HOSE B, WATER

Price €23.86
#15 19510-K1F-V00

FAN COMP, COOLING

Price €21.54
#16 84601-HA7-670

NUT, FENDER SETTING

Price €5.87
#17 90103-GET-003

BOLT, DRAIN

Price €9.66
#18 90602-K27-V01

CLAMP, HOSE (D20)

Price €3.97
#19 90701-KWN-901

CLAMP, WATER HOSE, 24MM

Price €6.78
#20 93401-0603008

BOLT-WASHER, 6X30

Price €1.02
#22 95701-0601600

BOLT, FLANGE, 6X16

Price €1.15
#23 96001-0602507

BOLT, FLANGE, 6X25

Price €1.22
#24 19162-K40-A00

MAT A, RADIATOR COVER

Price €9.35
#25 19163-K40-A00

MAT B, RADIATOR COVER

Price €18.89
#26 19164-K40-A00

MAT C, RADIATOR COVER

Price €4.76
#27 19165-K40-A00

MAT D, RADIATOR COVER

Price €9.35
#6 19100-K2S-N00

RADIATOR ASSY

Price €368.00
#7 19105-K2S-N00

BASE COMP, RADIATOR

Price €26.81
