DRIVE FACE 🏍️ NSS125AD
TRANSMISSION 🏍️ NSS125AD

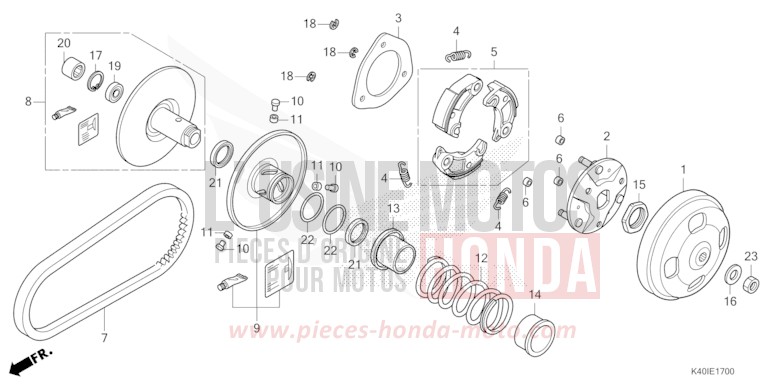

DRIVEN FACE for NSS125AD MAT CARNELIAN RED METALLIC (R384) from 2021

DRIVEN FACE for NSS125AD MAT CARNELIAN RED METALLIC (R384) from 2021
Reference
Product name
# 22011-KWN-900

PIECE SET, SLIDE

Price €14.75
# 22102-K40-A00

FACE, DRIVE

Price €47.21
# 22105-K0R-V00

BOSS, DRIVE FACE

Price €11.22
# 22110-K40-A00

FACE COMP, MOVABLE DRIVE

Price €71.16
# 22123-K40-A00

ROLLER SET, WEIGHT

Price €20.00
# 22131-K40-F00

PLATE, RAMP

Price €61.84
# 90401-K48-A00

WASHER, 15X258X4

Price €3.28
# 94030-14200

NUT, HEX, 14MM

Price €1.50
# 91203-K35-V01

OIL SEAL, 24X31X35 (ARAI)

Price €2.94
#1 22100-KFG-000

OUTER COMP, CLUTCH

Price €140.72
#2 22350-K40-F01

PLATE COMP, DRIVE

Price €64.13
#3 22361-KFG-000

PLATE, CLUTCH SIDE

Price €20.40
#4 22401-KFF-900

SPRING, CLUTCH

Price €5.87
#5 22535-K40-F00

WEIGHT SET, CLUTCH

Price €123.68
#6 22804-GB2-000

RUBBER, CLUTCH DAMPER

Price €4.14
#7 23100-K40-A01

BELT, DRIVE

Price €47.28
#8 23205-K40-A00

FACE SET, DRIVEN

Price €120.28
#9 23224-K40-A00

FACE SET, MOVABLE DRIVEN

Price €74.83
#10 23225-KSY-900

PIN, ROLLER GUIDE

Price €3.16
#11 23226-KVB-900 i

ROLLER, GUIDE

Price €2.52
#12 23233-KZY-902 i

SPRING, DRIVEN FACE

Price €29.22
#13 23237-K40-F00 i

COLLAR, SEAL

Price €12.19
#14 23238-KWN-900

COLLAR, SPRING

Price €9.04
#15 90202-KN7-670 i

NUT, SPECIAL, 28MM

Price €11.04
#16 90441-GY6-940 i

WASHER, 122X29X25

Price €9.68
#17 94520-28000 i

CIRCLIP, INTERNAL, 28MM

Price €1.74
#18 90605-166-720 i

CIRCLIP, 7MM

Price €6.52
#19 91002-GA7-701 i

BEARING, RADIAL BALL, 6902U (NTN)

Price €24.04
#19 91004-GGC-G01

BEARING, RADIAL BALL, 6902U (FCC)

Price €18.97
#19 91009-K93-T01

BEARING, RADIAL BALL, 6902U (FCC)

Price €12.79
#19 91009-KVY-961 i

BEARING, RADIAL BALL, 6902U (NSK)

Price €16.61
#20 91002-KFG-003 i

BEARING, NEEDLE, 22X29X18

Price €32.00
#21 91211-K81-N01

SEAL, DRIVEN FACE, 34X41X4 (FCC)

Price €3.36
#22 91384-KVB-900 i

O-RING, 388X19

Price €5.58
#23 94030-12200 i

NUT, HEX, 12MM

Price €1.42
