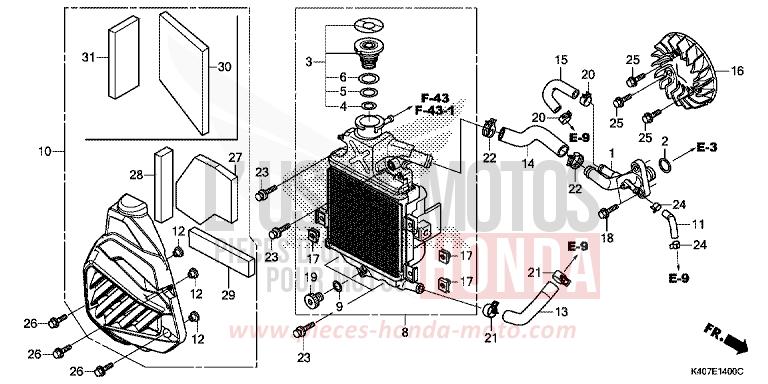

RADIATOR for NSS125AD MAT CARNELIAN RED METALLIC (R384) from 2020

RADIATOR for NSS125AD MAT CARNELIAN RED METALLIC (R384) from 2020
Reference
Product name
#1 12206-KZR-600

JOINT COMP, WATER HOSE

Price €37.27
#2 12207-KWN-900

O-RING, 154X2

Price €3.40
#3 19037-K40-F01

CAP COMP, RADIATOR (TRAD)

Price €55.98
#4 19049-K27-V51

O-RING A

Price €4.90
#5 19051-K27-V51

O-RING B

Price €5.00
#6 19052-K27-V51

O-RING C

Price €38.54
#8 19100-K40-F00

RADIATOR ASSY

Price €368.00
#9 19109-GET-003

SEAL, DRAIN

Price €5.82
#10 19140-K40-F30

COVER ASSY, RADIATOR

Price €46.16
#11 19332-K40-F00

TUBE, AIR BREATHER

Price €10.45
#12 19416-KEY-900

COLLAR

Price €5.48
#13 19501-K40-F00

HOSE A, WATER

Price €45.24
#14 19502-KZR-600

HOSE B, WATER

Price €15.60
#15 19504-KZR-600

HOSE, BYPASS

Price €12.59
#16 19510-K40-F00

FAN COMP, COOLING

Price €48.49
#17 84601-HA7-670

NUT, FENDER SETTING

Price €5.87
#18 90004-GHB-660

BOLT, FLANGE, 6X22 (NSHF)

Price €4.03
#19 90103-GET-003

BOLT, DRAIN

Price €9.66
#20 90601-K27-V01

CLAMP, HOSE (D155)

Price €3.04
#21 90602-K27-V01

CLAMP, HOSE (D20)

Price €3.97
#22 90701-KWN-901

CLAMP, WATER HOSE, 24MM

Price €6.78
#23 93401-0602508

BOLT-WASHER, 6X25

Price €1.27
#24 95002-4105008

CLAMP, TUBE (D105)

Price €1.48
#25 95701-0601602

BOLT, FLANGE, 6X16

Price €1.44
#26 96001-0601607

BOLT, FLANGE, 6X16

Price €1.39
#29 19154-K40-F00

MAT B, RADIATOR COVER

Price €29.08
#30 19153-K40-F30

MAT A, RADIATOR COVER

Price €37.58
#31 19155-K40-F30

MAT C, RADIATOR COVER
