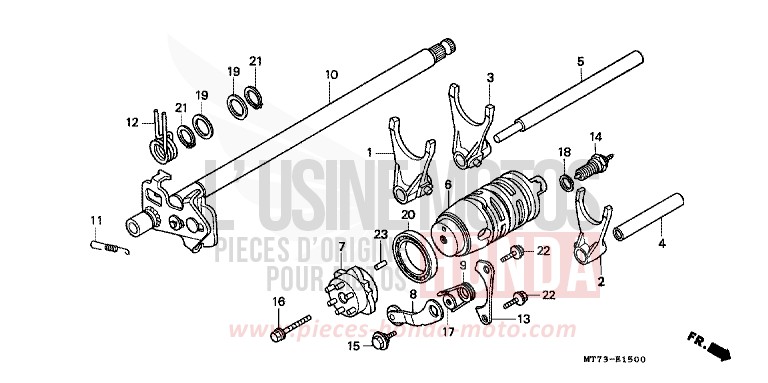

SHIFT DRUM/SHIFT FORK for NR NR RED (R175) from 1992

SHIFT DRUM/SHIFT FORK for NR NR RED (R175) from 1992
Reference
Product name
#8 24430-KA3-740

STOPPER COMP, DRUM

Price €30.47
#14 35600-KE8-010 i

SWITCH ASSY, NEUTRAL

Price €44.45
#15 90023-041-010 i

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

Price €7.06
#17 90417-360-000

WASHER, DRUM STOPPER

Price €6.26
#18 90443-MB0-000

WASHER, SEALING, 102MM

Price €6.13
#19 90451-155-000

WASHER, 14MM

Price €7.20
#21 94510-14000 i

CIRCLIP, EXTERNAL, 14MM

Price €0.88
#22 95701-0601400 i

BOLT, FLANGE, 6X14

Price €1.15
#23 96220-40080 i

ROLLER, 4X8

Price €0.49
#2 24212-MT7-000

FORK, CENTER GEARSHIFT

Contact us
#3 24213-MT7-000

FORK, L GEARSHIFT

Contact us
#4 24241-MT7-000

SHAFT A, SHIFT FORK

Contact us
#5 24261-MT7-000

SHAFT B, SHIFT FORK

Contact us
#6 24311-MT7-000

DRUM, GEARSHIFT

Contact us
#7 24312-KV3-831

CENTER, SHIFT DRUM

Contact us
#9 24435-KV3-000

SPRING, DRUM STOPPER

Contact us
#10 24610-MT7-000

SPINDLE COMP, GEARSHIFT

Contact us
#11 24641-KV3-830

SPRING, GEARSHIFT ARM

Contact us
#12 24651-KV3-000

SPRING, SHIFT RETURN

Price €11.82
Contact us
#13 24655-KV3-000 i

PLATE, BEARING SETTING

Price €19.62
Contact us
#16 90110-KE5-000

BOLT, FLANGE, 8X32

Contact us
#20 91007-MT7-003

BEARING, RADIAL BALL, 6805 (NTN)

Contact us
#1 24211-MT7-000

FORK, R GEARSHIFT

Contact us
